# Home Technical Document RoomIT Validator ## Descriptions This document related about RoomIT System. * Mainnet Validator Documents * Testnet Validaor Documents * DVPN * Security * Monitoring and Health Management * Automated Configuration Management * Patch and Update * Backup and Restore * Scalability * Disaster Recovery # Architecture Architecture RoomIT

## Overview The Roomit architecture is built independently from scratch, utilizing robust hardware components. This architecture is designed to be isolated, secure, and reliable. Its purpose is to ensure the security of blockchain validation, VPN services, and decentralized infrastructure services. Additionally, there are other services such as web service endpoints (API, RPC, GRPC), snapshot services, data providers, and more. All services are designed with redundancy, automation, security, monitored and boast a strong SLA with an average uptime of 99.99%. ## Main Component The Main Component Roomit provided is following: **1. Validation Blockchain (Mainnet dan Testnet)** Roomit has conducted extensive validations across various blockchains. These validations are carried out on both production and staging systems. In the blockchain ecosystem, the production system refers to the mainnet, which is the primary or production network of a blockchain project. This is the final version of the network released for public use and operates with cryptocurrency that holds real value. A testnet in blockchain is a trial network used for development, testing, and experimentation before features or changes are applied to the main network (mainnet). The details are as follows: **Mainnet** * Atomone * Fuel Network * Gitopia Blockchain * Planq Network * Source Protocol * SGE Protocol * Sentinel Network * Selfchain * Nibiru * Entangle * Gnosischain * Etc **Testnet** * Aptos (AIT2-3) * Celestia * Neutron * OKP4 * Masa Finance * QGov * Arkeo * Taiko * Alephzero * Gitopia * Planq * SGE * Namada * Entangle * Selfchain * Initia * Aleo * Etc **2. VPN Decentralized (DVPN)** A type of virtual private network that is distributed and managed by many nodes or participants in the network, unlike traditional VPNs which are managed by a single central entity, is called a decentralized VPN. We also provide VPN services, which are connected to blockchain. The services we offer are as follows: * Sentinel * Mysterium * NYM ## Flow From the architecture diagram above, the following aspects can be concluded: **Users** Users can contribute and invest their tokens to decentralize the network or use the VPN services we provide over the internet. Additionally, users can perform transactions or monitor their investments through the web services we offer, such as: * * * * * **Administrator** Since the system is well isolated, administrators need VPN access, SSH Public Key, and OTP Access to enter the system. Access is only possible through a single gateway. Roomit is truly designed with a baseline and isolated security system. **System** Our blockchain machines only have P2P connection access. The function of this P2P connection is used for the connection between validators to perform transactions. All request From internet for Endpoint Public Service or website service come through from proxy and did not touch validation server, we have provide service for each blockchain for Endpoint or Snapshots in other Machines. # Tech Stack Stack Technology RoomIT **Spesification Server** We are running virtual machine over hypervisor cluster with specsification server hypervisor following : ``` CPU : AMD EPYC 4244P - 6 c / 12 t - 3.8 GHz / 5.1 GHz RAM : 64 GB Disk : 2 TB ``` ``` CPU : AMD EPYC 4244P - 6 c / 12 t - 3.8 GHz / 5.1 GHz RAM : 64 GB Disk : 2 TB ``` ``` CPU : AMD EPYC 4244P - 6 c / 12 t - 3.8 GHz / 5.1 GHz RAM : 64 GB Disk : 2 TB ``` ``` CPU : AMD EPYC 4244P - 6 c / 12 t - 3.8 GHz / 5.1 GHz RAM : 64 GB Disk : 2 TB ``` we manage all environment using provisioning and automated. #### Virtualisation and Containering * Proxmox * Docker and LXC * KVM #### Networking * vSwitch * Wireguard * Opnsense #### DNS * PowerDNS * Dnsmasq * Namecheap API #### Remote Signer * TMKMS #### Security Tools * Layer 3 and 4 (net filter) | Firewall * Crowdsec | Firewall | WAF * Audit and Accounting | auditd * Filesystem Integrity | Aide * Openvas | Scanner vulnearbility * Hardening System * ZAP * Wazuh #### Automation * Ansible * Terraform * Jenkins #### Monitoring System * Grafana Stack (Prometehus, Alert Manager and Exporter) * Uptime Kuma * Monit * Tenderduty #### Alerting * Gotify * Telegram #### Tools Blockchain We build from scratch for manage operation our node and this close source #### Source Code Repository * gitopia.com * github.com * gitlab.com For other details, you can contact us at ** # Rest API Rest API RoomIT Roomit offers an API for seamless management and integration of blockchain services, enabling users to efficiently handle their investments and access network features and able integrating in our platform. ### Details Host : ``` https://stake.roomit.xyz ``` #### Profile * For Get details Our Validator Profiles ``` GET - /api/mainnet/profile GET - /api/testnet/profile ``` Output : ``` ........ [ { "moniker": "Roomit", "valoper": "bandvaloper13tf84rkc9yflru6kty4xj8jtkuzl6fd66f3q3z", "wallet_address": "band13tf84rkc9yflru6kty4xj8jtkuzl6fd6kl4r5f", "blockchain_name": "band", "chain_id": "laozi-mainnet", "unit": "uband", "udecimal": 6, "coingeckoId": "band-protocol", "ibc": "not active", "ibc_wallet": null, "seeds": "08bc9afd0cac4ae6cf8f1877920b0cc7e58a6f42@seeds.tendermint.roomit.xyz:40000", "persistent": "420994846f175d0413796be9caea49e07ad3a503@p2p.tendermint.roomit.xyz:16600" } ] ......... ``` #### System * For get version blockchain what we used ``` GET - /api/mainnet/version?blockchain_name=planq ``` Output : ``` {"version":"1.1.0"} ``` * For get last block from blockchain ``` GET - /api/mainnet/lastblock?blockchain_name=planq GET - /api/testnet/lastblock?blockchain_name=planq ``` Output : ``` {"latestBlockHeight":"9788147"} ``` * For Get Chain ID ``` GET - /api/mainnet/chainid?blockchain_name=planq GET - /api/testnet/chainid?blockchain_name=planq ``` Output : ``` {"network":"planq_7070-2"} ``` * For Get Status Synchronize Block ``` GET - /api/mainnet/synced?blockchain_name=planq GET - /api/testnet/synced?blockchain_name=planq ``` Output : ``` {"catchingUp":false} ``` #### Peers * For Get Peers - Non Filtered from our RPC, this RPC no filtered only connected with our node will be show ``` GET - /api/mainnet/peers/nonfiltered?blockchain_name=planq ``` Output : ``` ........ {"peers_nonfiltered":"6563c2409390cfea48623404812123315c5691df@undefined:26756,fb4cbb33179151e31311a498255f3194ced0c570@undefined:29656,3eb12284b7fb707490b8adfda6fa7d94e2fa5cd9@undefined:16603,76cc8a36e1ab54baef5dcb85663309daa494cee0@undefined:11156,97c53c39bb622da97a3aa4ab8cc6db32e67d6e8f@undefined:26656,89bd24ef4ccbd2425f127fd7822b4e55b0e09c36@undefined:26656,876b7a9b2b74ff7f6ba27028b24ca8aff5d9e9d9@undefined:61256,0e9387a4aa548998eda8f2bb4a5cd799345d5367@undefined:10756,b32cc55bf6382c9dbefb0c4ed5a615dbec1de41a@undefined:26656,fbf8a0d8dc3110f66e107752068346ecf8ef7eff@undefined:13656,6e6dd88c20bb7dc88caaefed5fa9bee59daa7a2c@undefined:20356,c8b05a87333041df65c0f61af47670e8811d8175@undefined:26656,97bf4b6f04f148edaa8c89d9033de470df9df5ca@undefined:26726,5086dee34ce6c69af7a6cf96d7d3a056d60c17ad@undefined:34656,f8bf62981f1c57b134a20e50d8afe016b1d0540b@undefined:26641,a3b8955aa523285d0aed51c7bfaf19eb20264ef5@undefined:10656,dd2f0ceaa0b21491ecae17413b242d69916550ae@undefined:26656,b039ad70d947e8b80b412310e7968eba370d5ffc@undefined:20356,e39dd27379e1a23760095a8f8d0943a30e264f5a@undefined:26726,8ad61ede4e3dc47b68b37f4c5309c11037d51b2f@undefined:26656,56f473a809cb87eaee37d9346a006e0b13077c50@undefined:26656,1efcb4b593bc4992ae413ac3c77f158a496908a4@undefined:26656,f0e3fa71a2eed651f0626fe913d9577a942f7e7a@undefined:33656,4d76396c180f8fab3abd34cc546f3c08c426905a@undefined:10656,fe5a38459191a00ad62e9f1913fc57581cef43a8@undefined:20356,5958a5508324f8bb1f7426c56937acd22e286577@undefined:30656,6e6415345f09527675e0d46d00c0a536c9c04f29@undefined:26656,ade4d8bc8cbe014af6ebdf3cb7b1e9ad36f412c0@undefined:20356,09ba537d6563018b97c502979c3478df4decf426@undefined:5656,bebfd590a2514520d158a2fce308e186e400f841@undefined:31656"} ......... ``` * For Get Peers - Filtered from our RPC, this RPC no filtered only connected with our node will be show ``` GET - /api/mainnet/peers/filtered?blockchain_name=planq ``` Output : ``` ........ {"peers_filtered":"09ba537d6563018b97c502979c3478df4decf426@152.53.32.140:5656,0e9387a4aa548998eda8f2bb4a5cd799345d5367@65.21.198.100:10756,0facb3fba65c74a3f602a212b739d2db840a37d3@167.235.12.38:12156,106302ce8ae5c02dd16cc251f64950b03e58a96a@65.108.230.113:1176,17c83d5faba42f6a783684c67f94762b0809bbef@135.181.222.33:20356,1adb7bf1e2775981f20a6e7ae85d6c82d9c13ebc@65.109.104.72:20356,1efcb4b593bc4992ae413ac3c77f158a496908a4@49.13.209.160:26656,241c9414dd5654d7a5b39f438c4b4b70f4a93634@46.4.23.251:28656,29335bb56d235dc39e51d5a5e5f55717d81f00bd@34.215.64.62:26656,2daef0223a20a030076449e494397ef640a95c8e@5.189.136.141:26656,2f433bd6a566d32be7ec502699ccfefddd845c90@38.46.221.23:26656,30d0d17ec2c267bd3df6cb6e14cb9b0abee53054@65.109.62.179:46656,3374ff118b1f01b52ea6f52fe2914f11abfb2581@138.201.21.197:51656,3707bb058157f3a0fa7d97b481fbc8a3a9f8bdb9@65.109.94.250:26656,3eb12284b7fb707490b8adfda6fa7d94e2fa5cd9@65.109.99.157:16603,3fd002790baf7913921903b8c0b27f217088144f@185.190.140.93:14656,4ad2ca3628ec1bb5092fdef9fc31d763a9785093@31.220.75.198:26656,4d44b699af2c4b0a6b8dfdf266a8dc17765113db@85.239.238.23:11656,4d76396c180f8fab3abd34cc546f3c08c426905a@65.108.232.168:10656,5086dee34ce6c69af7a6cf96d7d3a056d60c17ad@94.130.138.48:34656,56e43c7abc96db9244dd5cc6292dc6bb5e2341c4@89.39.106.38:20356,56f473a809cb87eaee37d9346a006e0b13077c50@51.195.63.229:26656,5958a5508324f8bb1f7426c56937acd22e286577@46.4.23.225:30656,599baf73a8d8ae930e5ede9aa5bd92833fbd718c@51.159.213.195:26656,6354dd332572f8daf17f1a0b92e98120a0d5d91f@167.235.102.45:10656,6563c2409390cfea48623404812123315c5691df@65.109.93.152:26756,6e6415345f09527675e0d46d00c0a536c9c04f29@129.152.30.180:26656,6e6dd88c20bb7dc88caaefed5fa9bee59daa7a2c@147.135.31.22:20356,76cc8a36e1ab54baef5dcb85663309daa494cee0@65.108.196.251:11156,81e395d1305e609cf4dd47f07f70536cbccf8a2d@65.109.99.157:16603,876b7a9b2b74ff7f6ba27028b24ca8aff5d9e9d9@116.202.192.143:61256,880b6eacd765af80615517a59fec72788a4d7864@141.95.165.245:26656,88f3dafe5bf183be45836be03bb0e53b7c5ab4df@37.187.149.73:26706,89bd24ef4ccbd2425f127fd7822b4e55b0e09c36@194.163.150.181:26656,8ad61ede4e3dc47b68b37f4c5309c11037d51b2f@51.79.24.196:26656,9630583394c98c3495ec5752fa4c64952b2c0aa6@152.228.212.220:26656,97bf4b6f04f148edaa8c89d9033de470df9df5ca@147.135.138.180:26726,97c53c39bb622da97a3aa4ab8cc6db32e67d6e8f@146.59.110.50:26656,a1f6399349707fb752a4e23950861bf14569c843@167.235.9.223:26656,a3b8955aa523285d0aed51c7bfaf19eb20264ef5@152.53.18.245:10656,a8bbdc5c49cb5e2f7a7abb079332b2eeb0f2e182@104.37.185.178:26658,ade4d8bc8cbe014af6ebdf3cb7b1e9ad36f412c0@135.181.5.219:20356,b039ad70d947e8b80b412310e7968eba370d5ffc@148.113.1.83:20356,b32cc55bf6382c9dbefb0c4ed5a615dbec1de41a@93.81.241.55:26656,b62dca4c82918971ef12fcd25f0a2229e62595f6@213.246.39.138:28656,b95f231726d7ea85d7d000fa6a96b5118aa5f04a@46.165.204.15:27656,bebfd590a2514520d158a2fce308e186e400f841@65.108.66.174:31656,c8b05a87333041df65c0f61af47670e8811d8175@5.161.215.42:26656,c8b549e4982ec6ee75c4a2ff04c486aafd1d3722@5.78.114.77:26656,cfd0bf63d54ddb6222ae7a626c55b923529e8527@136.243.104.103:10756,dd2f0ceaa0b21491ecae17413b242d69916550ae@135.125.247.70:26656,e39dd27379e1a23760095a8f8d0943a30e264f5a@167.114.118.234:26726,e499c85df22319f64c2cea74ebd00d8ac2675844@167.235.14.83:14556,e7a2929fa8273d0aa0a83b2a25ad4fbdf4471558@212.227.73.190:29656,eb93bbbff168f16993da2c618c3ac6cebb09f9dd@184.174.35.79:26656,edf3c6acb49930a9b634bc609f601de0ebcbcf1a@81.0.221.144:36656,f0e3fa71a2eed651f0626fe913d9577a942f7e7a@65.108.237.188:33656,f7d55c947e3f9848d31b82a5562d9d2a3dd0e04c@65.109.24.78:41656,f8bf62981f1c57b134a20e50d8afe016b1d0540b@95.165.89.222:26641,fb4cbb33179151e31311a498255f3194ced0c570@65.108.127.231:29656,fbf8a0d8dc3110f66e107752068346ecf8ef7eff@65.108.226.120:13656,fdc59829040c6bcb20a76b44c2e4432cc2345c1e@45.55.135.162:10756,fe5a38459191a00ad62e9f1913fc57581cef43a8@65.108.238.29:20356,fe78937abf98c31f0ba3254146a5368412c78382@167.235.3.247:26636"} ......... ``` * For Get Our Seeds Peers ``` GET - /api/mainnet/peers/seeds?blockchain_name=planq GET - /api/testnet/peers/seeds?blockchain_name=planq ``` Output : ``` {"seeds":"08bc9afd0cac4ae6cf8f1877920b0cc7e58a6f42@seeds.tendermint.roomit.xyz:40003"} ``` * For Get Our Persistent Peers ``` GET - /api/mainnet/peers/persistent?blockchain_name=planq GET - /api/testnet/peers/persistent?blockchain_name=planq ``` Output : ``` {"persistent":"3eb12284b7fb707490b8adfda6fa7d94e2fa5cd9@p2p.tendermint.roomit.xyz:16603"} ``` #### Snapshot * For Get Our Seeds Peers ``` GET - /api/mainnet/snapshot/fileinfo?blockchain_name=planq GET - /api/testnet/snapshot/fileinfo?blockchain_name=planq ``` Output : ``` {"filename":"2024-07-10-planq-9773721.tar.lzma","size":465960750} ``` #### IBC * For Get IBC Support ``` GET - /api/mainnet/ibc ``` Output : ``` ["planq_7070-2","gitopia","source-1","sentinelhub-2","sgenet-1","osmosis-1"] ``` # About About RoomIT ### Summary Roomit is a Limited Liability Company (LLC), officially registered as PT Roomit Trimiko Digital. Established in Indonesia in 2022, Roomit is driven by a team of IT professionals dedicated to leveraging blockchain technology, with a primary focus on DePIN (Decentralized Physical Infrastructure) technology. Roomit specializes in developing a decentralized virtual private network (VPN) service and facilitating transaction validation across multiple blockchains. The primary mission of Roomit is to provide reliable infrastructure and offer secure, private, and decentralized transaction services. Roomit is committed to delivering trusted technology solutions, with a primary focus on the development and implementation of blockchain technology. ### Services **Validation** Currently, We are validate in many blockcain mainnet/production on tendermint based and EVM. We are validating following : * Gitopia Blockchain * Planq Network * Source Protocol * SGE Protocol * Sentinel Network * Selfchain * Nibiru * Band Protocol * Entangle * Block Network * Gnosischain * Etc **Decentralized VPN** Besides that, we have provide infrastrcture VPN based on : * Sentinel Location : * Chicago | US * Detroit | US * Las Vegas | US * Hongkong | Hongkong * Jakarta | Indonesia * Meung-sur-Loire | France * Boulogne-Billancourt | France * NYM Location : * Indonesia * Mysterium Location : * Indoneisa * Germany **Infrastructures Services** We provide infrastuctures service for support decentralized and strong network, following : * State Sync * Snapshot * Endpoint Public * RPC * GRPC * API * Network Scan * Map Decentralization * Guides Deployment * Miscellaneous Node * addressbook * genesis * seed peers * persistent peers * cli cheatseets * pruning * Port changer * Governance Participant List * Validator List * IBC Relaying * Restake Your Investment **Opensource Contribution** * Maintainer Image dVPN Sentinel Image Docker multi architecture [Link 1- General](https://docs.roomit.xyz/mainnet/sentinel-network/sentinel-dvpn/docker-image-arm-dvpn) [Link 2 - Docker Image aarch64](https://hub.docker.com/r/wajatmaka/sentinel-aarch64-alpine) [Link 3 - Docker Image arm7](https://hub.docker.com/r/wajatmaka/sentinel-arm7-debian) ``` - Architecure 🖥️ X86_64 - Ubuntu 22.04 - Rocky Linux - Fedora Server 💻 ARMv7 - RaspberryPI 4 Debian 💻 ARM64/aarch64 - Ubuntu ``` * Maintainer Script Automation Deployment for dVPN Sentinel [Script Automation Deployment dVPN](https://gitopia.com/roomit-xyz/sentinel-node) * Ansible Auto deployment for tendermint [Ansible - Tendermint](https://gitopia.com/roomit-xyz/roomit-automation) Overall we have valuations from our delegators around $ 300k USD. Roomit is very grateful to the parties who have contributed to the development of Roomit. May health and happiness always be bestowed upon us all. Best Regards, Roomit # NYM Decentralized privacy platform

nym is decentralized privacy platform. It provides strong network-level privacy against sophisticated end-to-end attackers, and anonymous access control using blinded, re-randomizable, decentralized credentials. Different with VPN, dVPN, l2P, Facebook Connect and TOR. The Nym mixnet is an anonymous overlay network that provides strong network-level anonymity, even in the face of powerful systems capable of passively monitoring the entire network. \\ # NYM Mixnode Mixnode is machine mixing packet. The traffic Internet from user will be mixed for secure browsing # How to Stake Your Token How to stake your token $NYM Download Wallet : \ \ Import your seed key. We assume, you have $NYM Token. Copy Our ID Node Mixnode : ```bash AGaEw8kZuNAGZyQXYrtedaZcAYUE7aUzngeYGrBgHETo ``` 1. Open NYM Wallet 2. Move to menu **Delegation** and Click Delegate Button on Right Top.

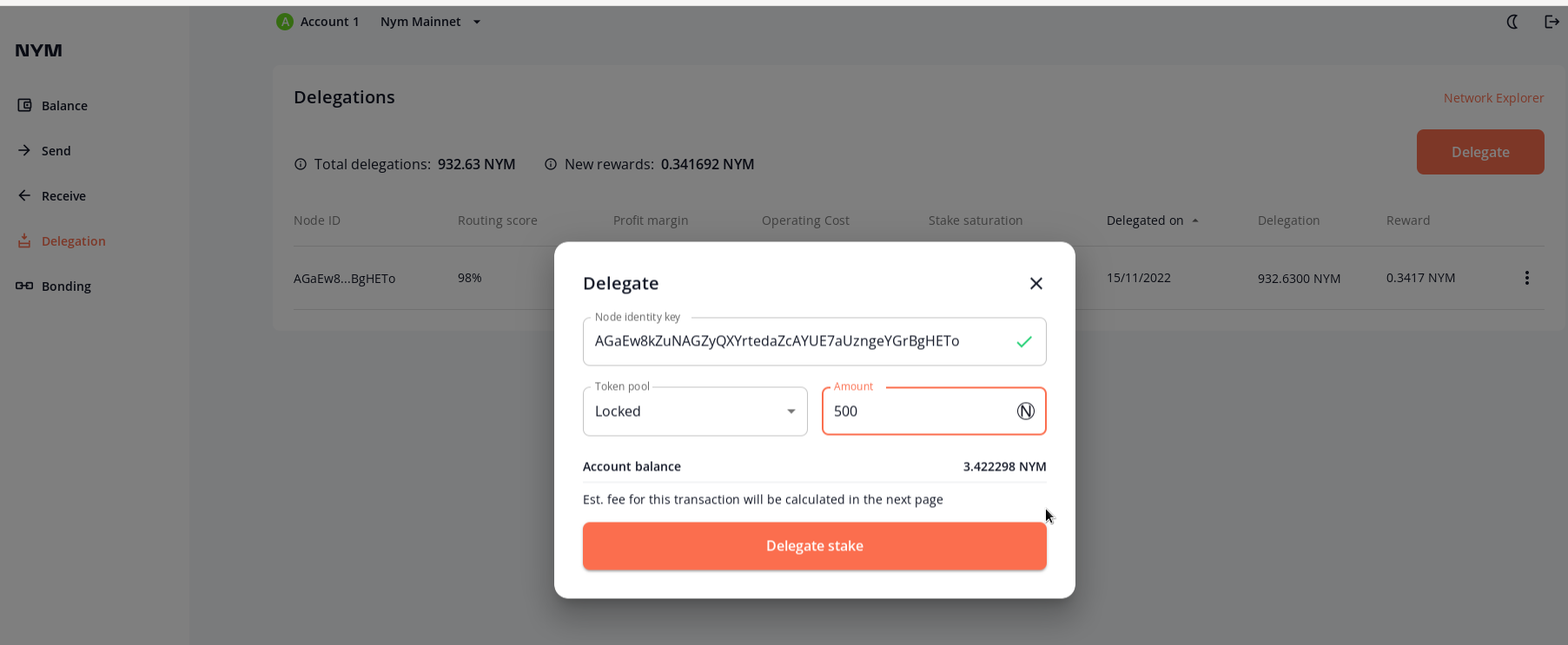

3\. Click Delgate Stake and Delegate. # Installation How to Installation NYM Mixnode # Preparation Setup Environment What we need {% hint style="info" %} Docker is Must {% endhint %} Setup User, Refer to [Broken mention](broken://pages/ymV0m2TBiK3EBy7fI1X9) after that, let set up docker [Broken mention](broken://pages/CjFKeIOufPxh55wfGSbz) {% hint style="info" %} Run as user : *salinem* {% endhint %} ### Create FHS ``` ├── bin ├── data │ └── mixnodes │ ├── monitoring │ └── telegraf └── systemd ``` # Setup Mixnode Installation and Setup NYM Mixnode {% hint style="info" %} Running As User : *salinem* {% endhint %} Create file Dockerfile-Mixnode in /mainnet/salinem/ ```bash FROM bitnami/minideb:buster AS builder RUN set -ex \ && install_packages libssl1.1 ca-certificates curl python3 python3-pip \ && useradd -U -m -s /sbin/nologin nym WORKDIR /home/nym COPY bin/mixnode.sh . COPY .env_mixnode . COPY bin/nym-mixnode . # Change onwership and permissions RUN chmod +x mixnode.sh && chown -R nym:nym ./ RUN pip3 install requests RUN chmod +x nym-mixnode USER nym VOLUME [ "/home/nym/.nym" ] EXPOSE 1789 CMD [ "./mixnode.sh" ] ``` And create file run.sh ```bash #!/bin/bash # # RoomIT # https://roomit.xyz # If this script useful and you will visit cikarang indonesia, # Let's drink coffee and talk about blockchain # # Script Automatic Build and Running Container NYM # admin@roomit.xyz # # # Container Mode Host OPTIONS="$1" SERVICE="$2" STORAGE="/mainnet/salinem/data" function help(){ echo "bash run.sh [ build | container | full-update ] [ mixnode | client | requester ]" } function service(){ mkdir -p ${STORAGE} if [ "${SERVICE}" == "mixnode" ] then docker run -d --name nym-mixnode-server --cap-add=NET_ADMIN --cap-add=NET_RAW --network host -v ${STORAGE}:/home/nym/.nym nym-mixnode-server/latest echo mixnode run container elif [ "${SERVICE}" == "client" ] then docker run -d --name nym-client-server --cap-add=NET_ADMIN --cap-add=NET_RAW --network host -v ${STORAGE}:/home/nym/.nym nym-client-server/latest echo client run container elif [ "${SERVICE}" == "requester" ] then docker run -d --name nym-requester-server --cap-add=NET_ADMIN --cap-add=NET_RAW --network host -v ${STORAGE}:/home/nym/.nym nym-requester-server/latest echo requester run container else help; fi } function build(){ if [ "${SERVICE}" == "mixnode" ] then echo mixnode run build docker build -f Dockerfile-Mixnode -t nym-mixnode-server/latest . elif [ "${SERVICE}" == "client" ] then echo client run build docker build -f Dockerfile-Client -t nym-client-server/latest . elif [ "${SERVICE}" == "requester" ] then echo requester run build docker build -f Dockerfile-Requester -t nym-requester-server/latest . else help; fi } function full:update(){ build; mkdir -p ${STORAGE} if [ "${SERVICE}" == "mixnode" ] then check_container=`docker ps -a | grep "\bnym-${SERVICE}-server\b" | grep -v "\bnym-${SERVICE}-server\b"` docker stop nym-${SERVICE}-server nym-${SERVICE}-server-old 2> /dev/null docker rm nym-${SERVICE}-server-old docker rename nym-${SERVICE}-server nym-${SERVICE}-server-old docker run -d --name nym-mixnode-server --cap-add=NET_ADMIN --cap-add=NET_RAW --network host -v ${STORAGE}:/home/nym/.nym nym-mixnode-server/latest if [ $? -eq 0 ] then docker rm nym-${SERVICE}-server-old echo "Container Removed ${SERVICE}" fi echo mixnode run container elif [ "${SERVICE}" == "client" ] then check_container=`docker ps -a | grep "\bnym-${SERVICE}-server\b" | grep -v "\bnym-${SERVICE}-server\b"` docker stop nym-${SERVICE}-server docker rename nym-${SERVICE}-server nym-${SERVICE}-server-old > /dev/null docker run -d --name nym-client-server --cap-add=NET_ADMIN --cap-add=NET_RAW --network host -v ${STORAGE}:/home/nym/.nym nym-client-server/latest if [ $? -eq 0 ] then docker rm nym-${SERVICE}-server-old echo "Container Removed ${SERVICE}" fi echo client run container elif [ "${SERVICE}" == "requester" ] then check_container=`docker ps -a | grep "\bnym-${SERVICE}-server\b" | grep -v "\bnym-${SERVICE}-server\b"` docker stop nym-${SERVICE}-server docker rename nym-${SERVICE}-server nym-${SERVICE}-server-old 2> /dev/null docker run -d --name nym-requester-server --cap-add=NET_ADMIN --cap-add=NET_RAW --network host -v ${STORAGE}:/home/nym/.nym nym-requester-server/latest if [ $? -eq 0 ] then docker rm nym-${SERVICE}-server-old echo "Container Removed ${SERVICE}" fi echo requester run container else help; fi } if [ "${OPTIONS}" == "build" ] then build; elif [ "${OPTIONS}" == "container" ] then service; elif [ "${OPTIONS}" == "full-update" ] then echo "Warning Systemd was not Active" full:update; else help; fi ``` Create File .env\_mixnode ```bash #!/bin/bash ID="Name Of Mixnode" WALLET="Assign If was Running First Service" ``` Create File in mixnode.sh bin/ ```bash #!/bin/bash set -x source .env_mixnode IP=`curl ifconfig.me` HOME=/home/nym function config_init () { if [ ! -f $HOME/.nym/mixnodes/$ID/data/private_sphinx.pem ] || [ ! -f $HOME/.nym/mixnodes/$ID/data/public_sphinx.pem ]; then ./nym-mixnode init --id $ID --host 0.0.0.0 --wallet-address $WALLET --announce-host $IP && ./nym-mixnode run --id $ID elif [ -f $HOME/.nym/mixnodes/${ID}/data/private_sphinx.pem ] || [ -f $HOME/.nym/mixnodes/${ID}/data/public_sphinx.pem ]; then RUST_BACKTRACE=1 ./nym-mixnode run --id $ID fi } ``` Download Mixnode ``` wget -O bin/nym-mixnode \ -c https://github.com/nymtech/nym/releases/download/nym-binaries-v1.1.2/nym-mixnode chmod +x bin/nym-mixnode ``` # Up And Running First Running Container Mixnode {% hint style="info" %} Notes : Setup Mixnode must be Finish First {% endhint %} Build Images ```bash bash run.sh build mixnode ``` Run Container ```bash bash run.sh container mixnode ``` Check Container ```bash docker ps ``` Stop Container ```bash docker stop nym-mixnode-server ``` Assign Wallet address in /mainnet/salinem/.env\_mixnode. For get Wallet Address ```bash cat /salinem/mainnet/data/mixnodes/"YOUR ID MIXNODE"/config/config.toml | grep wallet_address ``` Start again ```bash docker start nym-mixnode-server ``` Check Logs ```bash docker logs -f nym-mixnode-server ``` # Infrastructures # Port Mapping Port Mapping RoomIT Mixnode

Services	Port	Protocol	Status
Mixnet	1789	TCP	Public
Verloc	1790	TCP	Public
Metrics	8000	TCP	Public
Telegraf (Metrics Custom)	9101	TCP	Private

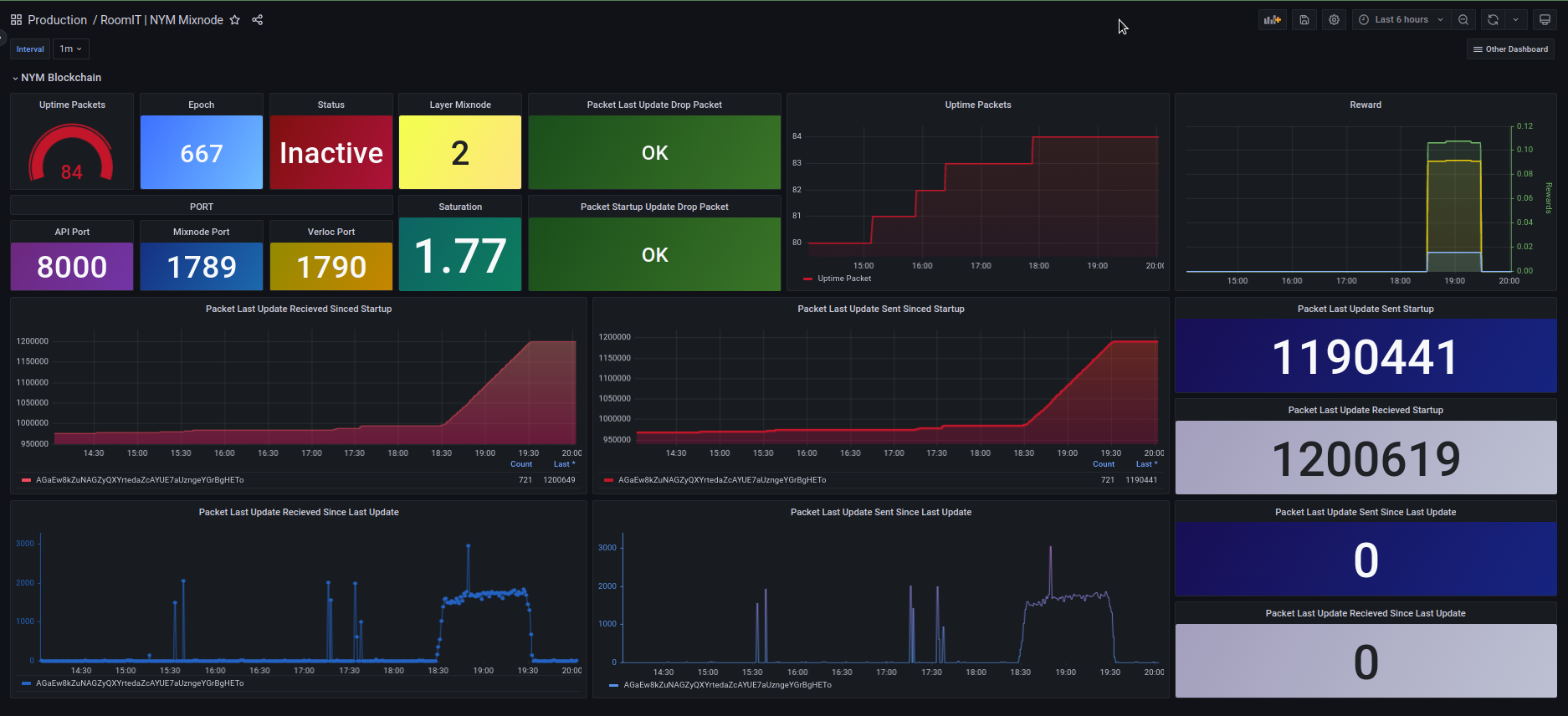

# Monitoring View Mixnode View Monitoring Private Mixnode

# Firewall NYM # PlanQ Document Node PlanQ

The blockchain cosmos on your phone Planq network opens up the full blockchain potential of your phone with easy accessibility. # Installation Node # Installation Validator Install Node Producer **Chain ID**: planq\_7070-2 | **Latest Binary Version**: v1.0.8 Update and install packages for compiling ``` sudo apt update sudo apt install curl git jq lz4 build-essential zsh -y ``` #### User Management {% hint style="info" %} **Running in user** (Assume) : *salinem* {% endhint %} Create User, Please Refer to [Broken mention](broken://pages/ymV0m2TBiK3EBy7fI1X9) Login as User salinem ```bash su - salinem ``` or ```bash sudo su - salinem ``` and make sure we are in directory ```bash pwd /mainnet/salinem ``` {% hint style="info" %} **Running in user** : *salinem* {% endhint %} #### FHS of PlanQ Create FHS for application ```bash echo "Install FHS" mkdir -p ${HOME}/tmp mkdir -p ${HOME}/lib mkdir -p ${HOME}/bin mkdir -p ${HOME}/conf mkdir -p ${HOME}/systemd ``` #### Install PlanQ ```bash cd ~ apt install jq -y apt install unzip -y wget https://github.com/planq-network/planq/releases/download/v1.0.2/planq_1.0.2_Linux_x86_64.tar.gz tar xvf planq_1.0.2_Linux_x86_64.tar.gz ``` #### Environment {% hint style="info" %} In this case, RoomIT used zsh, if you used bash just direct to ${HOME}/.bashrc or ${HOME}/.profile {% endhint %} ``` echo 'export PATH="${PATH}:${HOME}/bin"' >> ${HOME}/.zshrc source ~/.zshrc ``` #### Intialize Node ```bash planqd init --chain-id planq_7070-2 ``` #### Add Genesis ```bash wget https://raw.githubusercontent.com/planq-network/networks/main/mainnet/genesis.json mv genesis.json ~/.planqd/config/ ``` Validate Genesis ``` planqd validate-genesis ``` Edit config, You can refer to [Edit Configuration Node](/mainnet/planq/installation-node/edit-configuration-node) Apply State Sync, refer to [State Sync](/mainnet/planq/infrastructures/statesync) # Up And Running How to start running planq {% hint style="info" %} **Running in user** (Assume) : *salinem* {% endhint %} {% hint style="info" %} Ensure you have add sudoers, refer [Broken mention](broken://pages/5bYWaTbeErtLtOa9FvrG) {% endhint %} #### Create Systemd Create file in ${HOME}/systemd/planq-node.service ```bash export HOME="/mainnet/salinem" cat > ${HOME}/systemd/planqd-node.service <

seeds="dd2f0ceaa0b21491ecae17413b242d69916550ae@135.125.247.70:26656,0525de7e7640008d2a2e01d1a7f6456f28f3324c@51.79.142.6:26656,21432722b67540f6b366806dff295849738d7865@139.99.223.241:26656"
sed -i.bak -e "s/^seeds =.*/seeds = \"$seeds\"/" ${HOME}/.planqd/config/config.toml

Peers Node ```bash peers="3eb12284b7fb707490b8adfda6fa7d94e2fa5cd9@planq.p2p.roomit.xyz:16603,dd2f0ceaa0b21491ecae17413b242d69916550ae@135.125.247.70:26656,0525de7e7640008d2a2e01d1a7f6456f28f3324c@51.79.142.6:26656,21432722b67540f6b366806dff295849738d7865@139.99.223.241:26656,7c10b1a106a512976e8d71effe5c086327458eef@35.200.183.35:26656,b76abe67188be594e17d6e25c7231b027c8bd324@34.175.180.219:26656,60d86f728656b170956f826f54139b8bd6d16205@82.65.197.168:26656" sed -i 's|^persistent_peers *=.*|persistent_peers = "'$peers'"|' ${HOME}/.planqd/config/config.toml ``` #### Fast Sync Make sure you have parameter in $HOME/.planqd/config/config.toml ``` fast_sync = true version = "v0" ``` # Command PlanQ This is command about CLI Planq ### **Key Management** {% hint style="info" %} we assume, variable name\_your\_wallet is name of your own wallet. Install jq package for management json format **Ubuntu** `apt install jq` **`CentOS`** `yum install jq` **Arch Linux** `pacman -S jq` {% endhint %} {% hint style="info" %} **Running in user** (Assume) : *salinem* We never use this username in our production! {% endhint %} #### Gas Fee ``` --gas=1000000 --gas-prices=30000000000aplanq --gas-adjustment=1.15 ``` #### **Add New Key** ```bash planqd keys add mywallet --home ${HOME}/.planqd ``` #### **Recover Key** With Passphrase ```bash planqd keys add mywallet --recover --home ${HOME}/.planqd ``` With Keyring ```bash planqd keys add mywallet --recover --keyring-backend os --home ${HOME}/.planqd ``` #### **List Key** ```bash planqd keys list --home ${HOME}/.planqd ``` #### **Delete Key** ```bash planqd keys delete mywallet --home ${HOME}/.planqd ``` **Export Key** ```bash planqd keys export mywallet --home ${HOME}/.planqd ``` #### Import Key ``` planqd keys import mywallet mywallet_file.backup --home ${HOME}/.planqd ``` #### Show All Balances Address

for mywallet in `planqd keys list --home ${HOME}/.planqd--output json| jq -r ".[] .address"`
do
   CHAIN_ID="planq_7070-2"
   RPC="http://localhost:16703"
   planqd q bank balances ${mywallet} --home ${HOME}/.planqd --chain-id ${CHAIN_ID} --node ${RPC}
done

#### Show Balance Address ```bash planqd q bank balances mywallet_public_address --home ${HOME}/.planqd --chain-id planq_7070-2 --node http://localhost:16703 ``` ### Validator Management {% hint style="info" %} We assume,You have complete identities. Moniker, Website, Security and Details Your Validator Install jq package for management json format **Ubuntu** `apt install jq` **`CentOS`** `yum install jq` **Arch Linux** `pacman -S jq` {% endhint %} #### Create New Validator ```bash MONIKER="NAME_OF_YOUR_VALIDATOR" PROFILE="PGP_KEY_OF_KEYBASE" DETAILS="Describes Your Validator" WEBSITE="https://yourwebsite.com" planqd tx staking create-validator \ --amount=1000000000000000000aplanq \ --pubkey=$(planqd tendermint show-validator --home ${HOME}/.planqd) \ --moniker="${MONIKER}" \ --identity="${PROFILE}" \ --details="${DETAILS}" \ --website="${WEBSITE}" \ --chain-id=planq_7070-2 \ --commission-rate=0.05 \ --commission-max-rate=0.20 \ --commission-max-change-rate=0.01 \ --min-self-delegation=1 \ --from=mywallet \ --node http://localhost:16703 \ --home ${HOME}/.planqd\ --gas=1000000 --gas-prices=30000000000aplanq --gas-adjustment=1.15 \ -y ``` #### Edit Validator Identities Informations ```bash MONIKER="NAME_OF_YOUR_VALIDATOR" PROFILE="PGP_KEY_OF_KEYBASE" DETAILS="Describes Your Validator" WEBSITE="https://yourwebsite.com" planqd tx staking edit-validator \ --moniker="${MONIKER}" \ --identity="${PROFILE}" \ --details="${DETAILS}" \ --website="${WEBSITE}" \ --chain-id=planq_7070-2 \ --commission-rate=0.05 \ --from=mywallet \ --node http://localhost:16703 \ --home ${HOME}/.planqd \ --gas=1000000 --gas-prices=30000000000aplanq --gas-adjustment=1.15 \ -y ``` #### Get Validator Info ``` planqd status 2>&1 | jq .ValidatorInfo ``` #### Get Syncing Block ```bash planqd status 2>&1 | jq .SyncInfo ``` #### Get Peer Own Node ```bash echo $(planqd tendermint show-node-id)'@'$(curl -s ifconfig.me)':'$(cat $HOME/.planqd/config/config.toml | sed -n '/Address to listen for incoming connection/{n;p;}' | sed 's/.*://; s/".*//') ``` #### Get Peer Node ```bash curl -sS http://localhost:16701/net_info | jq -r '.result.peers[] | "\(.node_info.id)@\(.remote_ip):\(.node_info.listen_addr)"' | awk -F ':' '{print $1":"$(NF)}' ``` #### Unjail Validator ```bash planqd tx slashing unjail \ --from mywallet \ --chain-id planq_7070-2 \ --home ${HOME}/.planqd\ --node http://localhost:16703 \ --gas=1000000 --gas-prices=30000000000aplanq --gas-adjustment=1.15 \ -y ``` #### Jail Reason ```bash planqd query slashing signing-info $(planqd tendermint show-validator) \ --node http://localhost:16703 \ --home ${HOME}/.planqd ``` #### List All Active Validator ```bash planqd q staking validators -oj --limit=3000 | jq '.validators[] | select(.status=="BOND_STATUS_BONDED")' | jq -r '(.tokens|tonumber/pow(10; 6)|floor|tostring) + " \t " + .description.moniker' | sort -gr | nl ``` #### List All Inactive Validator ```bash planqd q staking validators -oj --limit=3000 | jq '.validators[] | select(.status=="BOND_STATUS_UNBONDED")' | jq -r '(.tokens|tonumber/pow(10; 6)|floor|tostring) + " \t " + .description.moniker' | sort -gr | nl ``` #### Show Validator Details ``` planqd \ query staking validator \ $(planqd keys show \ $(planqd keys list --home ${HOME}/.planqd--output json| jq -r ".[] .address" | tail -n1) \ --bech val -a) \ --chain-id planq_7070-2 \ --node http://localhost:16703 ``` ### Token Management #### Withdraw All Reward From Validator ```bash planqd tx distribution withdraw-all-rewards \ --from mywallet \ --chain-id planq_7070-2 \ --node http://localhost:16703 \ --home ${HOME}/.planqd\ --gas=1000000 --gas-prices=30000000000aplanq --gas-adjustment=1.15 \ -y ``` #### Withdraw Commision Reward From Validator ```bash planqd tx distribution withdraw-rewards $(planqd keys show mywallet --bech val -a) \ --commission \ --from mywallet \ --chain-id planq_7070-2 \ --node http://localhost:16703 \ --home ${HOME}/.planqd\ --gas=1000000 --gas-prices=30000000000aplanq --gas-adjustment=1.15 \ -y ``` #### Delegate My Token to Own Validator ```bash planqd tx staking delegate $(planqd keys show wallet --bech val -a) 100000aplanq \ --from mywallet \ --home ${HOME}/.planqd\ --node http://localhost:16703 \ --chain-id planq_7070-2 \ --gas=1000000 --gas-prices=30000000000aplanq --gas-adjustment=1.15 \ -y ``` #### Delegate Your Token To Our Validator ```bash planqd tx staking delegate prefixVALOPExxxxxx 100000aplanq \ --from mywallet \ --home ${HOME}/.planqd\ --node http://localhost:16703 \ --chain-id planq_7070-2 \ --gas=1000000 --gas-prices=30000000000aplanq --gas-adjustment=1.15 \ -y ``` #### Redelegate Tokens to Another Validator ```bash planqd tx staking redelegate $(planqd keys show wallet --bech val -a) 1000000aplanq \ --from mywallet --home ${HOME}/.planqd\ --node http://localhost:16703 \ --chain-id planq_7070-2 \ --gas=1000000 --gas-prices=30000000000aplanq --gas-adjustment=1.15 \ -y ``` #### Unbound or Unstake Your Tokens ```bash planqd tx staking unbond $(planqd keys show wallet --bech val -a) 1000000aplanq \ --from mywallet \ --home ${HOME}/.planqd\ --node http://localhost:16703 \ --chain-id planq_7070-2 \ --gas=1000000 --gas-prices=30000000000aplanq --gas-adjustment=1.15 \ -y ``` Send tokens to the wallet ``` planqd tx bank send wallet 1000000aplanq \ --from mywallet \ --home ${HOME}/.planqd\ --node http://localhost:16703 \ --chain-id planq_7070-2 \ --gas=1000000 --gas-prices=30000000000aplanq --gas-adjustment=1.15 \ -y ``` ### Governance {% hint style="info" %} Install jq package for management json format **Ubuntu** `apt install jq` **`CentOS`** `yum install jq` **Arch Linux** `pacman -S jq` {% endhint %} #### List All Proposal ```bash planqd query gov proposals ``` #### How to Vote ```bash ### vote yes planqd tx gov vote 1 yes \ --from mywallet \ --home ${HOME}/.planqd\ --node http://localhost:16703 \ --chain-id planq_7070-2 \ --gas=1000000 --gas-prices=30000000000aplanq --gas-adjustment=1.15 \ -y ### vote no planqd tx gov vote 1 no \ --from mywallet \ --home ${HOME}/.planqd\ --node http://localhost:16703 \ --chain-id planq_7070-2 \ --gas=1000000 --gas-prices=30000000000aplanq --gas-adjustment=1.15 \ -y ### vote abstain planqd tx gov vote 1 abstain \ --from mywallet \ --home ${HOME}/.planqd\ --node http://localhost:16703 \ --chain-id planq_7070-2 \ --gas=1000000 --gas-prices=30000000000aplanq --gas-adjustment=1.15 \ -y ### vote No With Veto planqd tx gov vote 1 nowithveto \ --from mywallet \ --home ${HOME}/.planqd\ --node http://localhost:16703 \ --chain-id planq_7070-2 \ --gas=1000000 --gas-prices=30000000000aplanq --gas-adjustment=1.15 \ -y ``` # Infrastructures # Addresbook AddressBook Planq From RoomIT {% embed url="" %} Planq Addressbook {% endembed %} #### How to Deploy Stop Your Service Blockchain ```bash sudo systemctl stop planq-node ``` > > Notes : for systemd init blockchain, adjust with your name of service. **systemctl stop planqd** Download And Deploy ``` curl -Ls https://roomit.xyz/addressbook/mainnet/planq/addrbook.json > $HOME/.planqd/config/addrbook.json ``` Start Your Service Blockchain ```bash sudo systemctl start planq-node ``` # Endpoint Public Endpoint Public Planq From RoomIT ## RPC {% embed url="" %} RoomIT RPC Planq {% endembed %} ## API {% embed url="" %} RoomIT API planq {% endembed %} ## gRPC {% embed url="grpc.planq.roomit.xyz:8443" %} RoomIT gRPC planq {% endembed %} Example Call : {% hint style="info" %} Assume, you have done install *grpcurl* {% endhint %} ```bash grpcurl grpc.planq.roomit.xyz:8443 list ``` # Genesis Genesis Public Planq From RoomIT #### Genesis {% embed url="" %} #### How to Deploy Stop Your Service Blockchain ```bash sudo systemctl stop planq-node ``` > > Notes : for systemd init blockchain, adjust with your name of service. **systemctl stop planqd** Download And Deploy ``` curl -Ls https://roomit.xyz/genesis/mainnet/planq/genesis.json > $HOME/.planqd/config/genesis.json ``` Start Your Service Blockchain ```bash sudo systemctl start planq-node ``` # Peers Peers Planq From RoomIT ## PERSISTENT PEERS ```bash 3eb12284b7fb707490b8adfda6fa7d94e2fa5cd9@p2p.tendermint.roomit.xyz:16603 ``` ## SEEDS PEERS ```bash 08bc9afd0cac4ae6cf8f1877920b0cc7e58a6f42@seeds.tendermint.roomit.xyz:40003 ``` # Snapshot Snapshot Planq From RoomIT ## How to Deploy Snapshot? 1. Install Compression/Decompression Tools ```bash sudo apt install lzma -y ``` 2. Download Snapshot ```bash SNAPSHOT=$(curl -s https://roomit.xyz/snapshot/mainnet/planq/ | grep -i "//g" | sed "s/ //g") wget -c https://roomit.xyz/snapshot/mainnet/planq/${SNAPSHOT} --inet4-only ``` 3. Stop Your Service Blockchain ```bash sudo systemctl stop planq-node ``` > > Notes : for systemd init blockchain, adjust with your name of service. **systemctl stop planqd** 4. Backup State Validator ```bash cp ${HOME}/.planqd/data/priv_validator_state.json ${HOME}/.planqd/priv_validator_state.json ``` 4. Reset Node Blockchain ```bash planqd tendermint unsafe-reset-all --home $HOME/.planqd --keep-addr-book ``` 5. Extract Data Snapshot ```bash lzma -d -c ${SNAPSHOT} | tar -xv -C $HOME/.planqd ``` 6. Restore State Validator ```bash cp ${HOME}/.planqd /priv_validator_state.json ${HOME}/.planqd/data/priv_validator_state.json ``` 7. Start Node Blockchain ```bash sudo systemctl start planq-node ``` # State Sync StateSync Planq From RoomIT Create Mini script, assume filename is statesync.sh ```bash #!/bin/bash SNAP_RPC="https://rpc.planq.roomit.xyz:443" LATEST_HEIGHT=$(curl -s $SNAP_RPC/block | jq -r .result.block.header.height); \ BLOCK_HEIGHT=$((LATEST_HEIGHT - 2000)); \ TRUST_HASH=$(curl -s "$SNAP_RPC/block?height=$BLOCK_HEIGHT" | jq -r .result.block_id.hash) sed -i.bak -E "s|^(enable[[:space:]]+=[[:space:]]+).*$|\1true| ; \ s|^(rpc_servers[[:space:]]+=[[:space:]]+).*$|\1\"$SNAP_RPC,$SNAP_RPC\"| ; \ s|^(trust_height[[:space:]]+=[[:space:]]+).*$|\1$BLOCK_HEIGHT| ; \ s|^(trust_hash[[:space:]]+=[[:space:]]+).*$|\1\"$TRUST_HASH\"|" $HOME/.planqd/config/config.toml ``` Stop Service ```bash sudo systemctl stop planq-node ``` > > Notes : for systemd init blockchain, adjust with your name of service. **systemctl stop planqd** Execute Script after Service Stopped ```bash bash statesync.sh ``` Reset Node ```bash # On some tendermint chains planqd unsafe-reset-all # On other tendermint chains planqd tendermint unsafe-reset-all --home $HOME/.planqd --keep-addr-book ``` Start Services ```bash sudo systemctl start planq-node ``` # Firewall and Port Mapping PlanQ Port Mapping And Firewall Planq | RoomIT Validator ## Port Mapping #### EXAMPLE | Services | Port | Protocol | Status | | ------------------ | ----- | -------- | --------------- | | Proxy App | 16503 | TCP | Private | | RPC | 16703 | TCP | Private | | pProf | 1103 | TCP | Private | | P2P | 16603 | TCP | Public (Direct) | | Prometheus Metrics | 16803 | TCP | Private | | API | 1203 | TCP | Private | | gRPC | 1303 | TCP | Private | | gRPC Web | 1403 | TCP | Private | | TMKMS | 5003 | TCP | Private | ## Firewall Planq ``` ######## Planq Protocol VALIDATOR # gRPC -A INPUT -s 10.xxx.xxx.xxx -p tcp -m multiport --dports 1303 -m state --state NEW,RELATED,ESTABLISHED -j ACCEPT # Horcrux / tmkms -A INPUT -s 10.xxx.xxx.xxx -p tcp -m multiport --dports 5003 -m state --state NEW,RELATED,ESTABLISHED -j ACCEPT # Consensus Metrics Exporter -A INPUT -s 10.xxx.xxx.xxx -p tcp -m multiport --dports 1605 -j ACCEPT # api -A INPUT -s 10.xxx.xxx.xxx -p tcp -m multiport --dports 1203 -m state --state NEW,RELATED,ESTABLISHED -j ACCEPT # rpc -A INPUT -s 10.xxx.xxx.xxx -p tcp -m multiport --dports 16703 -m state --state NEW,RELATED,ESTABLISHED -j ACCEPT # p2p -A INPUT -p tcp -m multiport --dports 16603 -m state --state NEW,RELATED,ESTABLISHED -j ACCEPT # Metrics -A INPUT -s 10.xxx.xxx.xxx -p tcp -m multiport --dports 16803 -m state --state NEW,RELATED,ESTABLISHED -j ACCEPT ``` # Gitopia Document Node Gitopia

Gitopia is the next-generation Code Collaboration Platform fuelled by a decentralized network and interactive token economy. It is designed to optimize the open-source software development process through collaboration, transparency, and incentivization. # Installation Node # Installation Validator Install Node Producer **Chain ID**: gitopia | **Latest Binary Version**: v3.3.0 Update and install packages for compiling ``` sudo apt update sudo apt install curl git jq lz4 build-essential zsh -y ``` #### User Management {% hint style="info" %} **Running in user** (Assume) : *salinem* We never used this username in our production ! {% endhint %} Create User, Please Refer to [Broken mention](broken://pages/ymV0m2TBiK3EBy7fI1X9) Login as User salinem ```bash su - salinem ``` or ```bash sudo su - salinem ``` and make sure we are in directory ```bash pwd /mainnet/salinem ``` {% hint style="info" %} **Running in user** : *salinem* {% endhint %} #### FHS of Gitopia Create FHS for application ```bash echo "Install FHS" mkdir -p ${HOME}/tmp mkdir -p ${HOME}/lib mkdir -p ${HOME}/bin mkdir -p ${HOME}/conf mkdir -p ${HOME}/systemd ``` #### Install Gitopia ```bash cd ~ apt install jq -y apt install unzip -y wget https://server.gitopia.com/releases/Gitopia/gitopia/v3.3.0/gitopiad_3.3.0_linux_amd64.tar.gz tar xvf gitopiad_3.3.0_linux_amd64 -C ${HOME}/bin/ ``` #### Environment {% hint style="info" %} In this case, RoomIT used zsh, if you used bash just direct to ${HOME}/.bashrc or ${HOME}/.profile {% endhint %} ``` echo 'export PATH="${PATH}:${HOME}/bin"' >> ${HOME}/.zshrc source ~/.zshrc ``` #### Intialize Node ```bash gitopiad init --chain-id gitopia ``` #### Add Genesis

wget https://github.com/gitopia/mainnet/raw/master/genesis.tar.gz && tar xvf genesis.tar.gz
mv genesis.json ~/.gitopia/config/

Validate Genesis ``` gitopiad validate-genesis ``` Edit config, You can refer to [Edit Configuration Node](/mainnet/gitopia/installation-node/edit-configuration-node) Apply State Sync, refer to [State Sync](/mainnet/gitopia/infrastructures/statesync) # Up And Running How to start running gitopia {% hint style="info" %} **Running in user** (Assume) : *salinem* We never used this username in our production ! {% endhint %} {% hint style="info" %} Ensure you have add sudoers, refer [Broken mention](broken://pages/5bYWaTbeErtLtOa9FvrG) {% endhint %} #### Create Systemd Create file in ${HOME}/systemd/gitopia-node.service ```bash export HOME="/mainnet/salinem" cat > ${HOME}/systemd/gitopia-node.service <



seeds="babc3f3f7804933265ec9c40ad94f4da8e9e0017@seed.rhinostake.com:11356,ade4d8bc8cbe014af6ebdf3cb7b1e9ad36f412c0@seeds.polkachu.com:11356,a4a69a62de7cb0feb96c239405aa247a5a258739@seeds.cros-nest.com:57656"
sed -i.bak -e "s/^seeds =.*/seeds = \"$seeds\"/" ${HOME}/.gitopia/config/config.toml

Peers Node ```bash peers="4cf66531681c92f15c95c25bd1bff524f9dca35e@65.109.154.181:26656,b2f764694d52e09793d68259d584ece0c194b6fe@65.108.229.93:26656,082e95b5d5351e68dcfb24dff802f9064cfd5a4c@65.109.92.241:51056,a94aec7233f9fec2b2de4b5c9dab6ad979820b3d@65.109.104.118:60756,a0ebd1e5845148c47451452047c7c99621da195e@65.109.96.93:60556,4adfa5889675e1e91ea4459e15ff4a0ba53e7828@65.108.224.156:19656,12f6b84a23b054a6591c647c2a4456c40af65cce@5.9.147.22:24657,88497ab3bbbcc1e8545771f45020e738bcce590f@95.165.89.222:24136,abca18ed112719b4f0a23932797dba2733f0fd44@23.88.5.169:25656,976d95adec7f0d7fda4464df019fa538fa0bb4ce@144.76.97.251:44656,ffd761a9e0d86609de6dae5935f99451694051a9@34.28.130.17:26656,5b2df98ad73a0a81a5bd31da4489a9236a7d7a99@65.21.91.160:26867,712dd67b7abe08577d394e90a4930492c8f7d2ee@65.108.124.219:41656,dee34ce3265a8901b52edfef8914530e4a9d05af@gitopia.sergo.dev:12283,c35eb6124591bad21673e8d802898faa18e0352a@65.109.29.150:36656,f9b892ea2e8ed8aa83f7b98e7e47371c23b01924@213.239.207.175:36656,8105128854785c428cff7aeed4f8b44a0a478252@provider.boxedcloud.net:31527,8e42db619abe34afe8cb39d4a2d04ae5db5bdaaf@141.94.139.233:26656,de34c6491557c59bc5d73631fb73bf05cd726e3e@142.132.202.50:37656,50b42bb809f445eb59db844ef6550658ef51a391@79.143.179.196:43656,a5233e4359a39e09d7b261c200cdc014bbef76ad@65.108.8.247:11356,2330fa28b8613786c741778d057616e3b91a8ae9@95.217.192.230:21656,a0b6c89b4fe0f455a027080103bffd001f3b6248@65.21.134.202:26356,abd217aa49d5ee86c271d04feef2cf4c97ff8d55@gitopia.p2p.roomit.xyz:16601,0e9f303834a5d1f3be0babd5466725b3609ebc82@65.21.141.246:28656,cf721cc0ae7b6cf9c58784ccfc87f6f621a09ffb@65.109.99.68:26656,11879f38e16e1723ef70950f5222ec78dde7e62f@65.109.17.23:56240,fd6a538800c2acb937f9fc45268704361af1459f@65.109.116.204:12256,b35d46fcfc1e4cfa943a299fcb39853e15e94d8b@81.30.157.35:14656" sed -i 's|^persistent_peers *=.*|persistent_peers = "'$peers'"|' ${HOME}/.gitopia/config/config.toml ``` #### Fast Sync Make sure you have parameter in $HOME/.gitopia/config/config.toml ``` fast_sync = true version = "v0" ``` # Command Gitopia This is command about CLI Gitopia ### **Key Management** {% hint style="info" %} we assume, variable name\_your\_wallet is name of your own wallet. Install jq package for management json format **Ubuntu** `apt install jq` **`CentOS`** `yum install jq` **Arch Linux** `pacman -S jq` {% endhint %} {% hint style="info" %} **Running in user** (Assume) : *salinem* We never use this username in our production! {% endhint %} #### Gas Fee ``` --gas=auto --gas-prices=0.5ulore --gas-adjustment=1.2 ``` #### **Add New Key** ```bash gitopiad keys add mywallet --home ${HOME}/.gitopia ``` #### **Recover Key** With Passphrase ```bash gitopiad keys add mywallet --recover --home ${HOME}/.gitopia ``` With Keyring ```bash gitopiad keys add mywallet --recover --keyring-backend os --home ${HOME}/.gitopia ``` #### **List Key** ```bash gitopiad keys list --home ${HOME}/.gitopia ``` #### **Delete Key** ```bash gitopiad keys delete mywallet --home ${HOME}/.gitopia ``` **Export Key** ```bash gitopiad keys export mywallet --home ${HOME}/.gitopia ``` #### Import Key ``` gitopiad keys import mywallet mywallet_file.backup --home ${HOME}/.gitopia ``` #### Show All Balances Address

for mywallet in `gitopiad keys list --home ${HOME}/.gitopia--output json| jq -r ".[] .address"`
do
   CHAIN_ID="gitopia"
   RPC="http://localhost:16701"
   gitopiad q bank balances ${mywallet} --home ${HOME}/.gitopia --chain-id ${CHAIN_ID} --node ${RPC}
done

Secure, Scalable Blockchain-Agnostic Decentralized Oracle Band Protocol is a cross-chain data oracle platform that aggregates and connects real-world data and APIs to smart contracts. # Installation Node # Installation Validator Install Node Producer **Chain ID**: laozi-mainnet | **Latest Binary Version**: v2.5.4 Update and install packages for compiling ``` sudo apt update sudo apt install curl git jq lz4 build-essential zsh -y ``` #### User Management {% hint style="info" %} **Running in user** (Assume) : *salinem* We never used this username in our production ! {% endhint %} Create User, Please Refer to [Broken mention](broken://pages/ymV0m2TBiK3EBy7fI1X9) Login as User salinem ```bash su - salinem ``` or ```bash sudo su - salinem ``` and make sure we are in directory ```bash pwd /mainnet/salinem ``` {% hint style="info" %} **Running in user** : *salinem* {% endhint %} #### FHS of Band Create FHS for application ```bash echo "Install FHS" mkdir -p ${HOME}/tmp mkdir -p ${HOME}/lib mkdir -p ${HOME}/bin mkdir -p ${HOME}/conf mkdir -p ${HOME}/systemd ``` ### Install Golang ```bash # Install Go 1.19.1 wget https://go.dev/dl/go1.19.1.linux-amd64.tar.gz tar xf go1.19.1.linux-amd64.tar.gz sudo mv go /usr/local/go # Set Go path to $PATH variable echo "export PATH=$PATH:/usr/local/go/bin:~/go/bin" >> $HOME/.zshrc source ~/.zshrc ``` #### Install Band ```bash cd ~ # Clone BandChain Laozi version v2.5.2 git clone https://github.com/bandprotocol/chain cd chain git fetch && git checkout v2.5.2 # Install binaries to $GOPATH/bin export GOPATH="${HOME}/lib" make install cp ${HOME}/lib/bin/* ~/bin/ ``` #### Environment {% hint style="info" %} In this case, RoomIT used zsh, if you used bash just direct to ${HOME}/.bashrc or ${HOME}/.profile {% endhint %} ``` echo 'export PATH="${PATH}:${HOME}/bin"' >> ${HOME}/.zshrc source ~/.zshrc ``` Set Variable ```bash # Chain ID of Laozi Mainnet export CHAIN_ID=laozi-mainnet # Wallet name to be used as validator's account, please change this into your name (no whitespace). export WALLET_NAME= # Name of your validator node, please change this into your name. export MONIKER= # URL of genesis file for Laozi Mainnet export GENESIS_FILE_URL=https://raw.githubusercontent.com/bandprotocol/launch/master/laozi-mainnet/genesis.json # Data sources/oracle scripts files export BIN_FILES_URL=https://raw.githubusercontent.com/bandprotocol/launch/master/laozi-mainnet/files.tar.gz ``` #### Intialize Node ```bash bandd init --chain-id $CHAIN_ID "$MONIKER" ``` **Replace genesis file with our genesis file** ```bash wget $GENESIS_FILE_URL -O $HOME/.band/config/genesis.json ``` **Download data sources / oracle scripts files, and store in $HOME/.band/files** ```bash wget -qO- $BIN_FILES_URL | tar xvz -C $HOME/.band/ ``` **Create new account** ```bash bandd keys add $WALLET_NAME ``` Validate Genesis ``` bandd validate-genesis ``` Edit config, You can refer to [Edit Configuration Node](/mainnet/band/installation-node/edit-configuration-node) Apply State Sync, refer to [State Sync](/mainnet/band/infrastructures/statesync) # Up And Running How to start running Band {% hint style="info" %} Ensure you have add sudoers, refer [Broken mention](broken://pages/5bYWaTbeErtLtOa9FvrG) {% endhint %} {% hint style="info" %} **Running in user** (Assume) : *salinem* We never used this username in our production ! {% endhint %} #### Create Systemd Create file in ${HOME}/systemd/band-node.service ```bash export HOME="/mainnet/salinem" cat > ${HOME}/systemd/band-node.service <



seeds="8d42bdcb6cced03e0b67fa3957e4e9c8fd89015a@34.87.86.195:26656,543e0cab9c3016a0e99775443a17bcf163038912@34.150.156.78:26656,2c884e60a0944958a2a9389f07f2f66dcfc3add0@seeds-bandprotocol.activenodes.io:3665"
sed -i.bak -e "s/^seeds =.*/seeds = \"$seeds\"/" ${HOME}/.band/config/config.toml

Peers Node ```bash peers="57135ca657de0637a1b583d4c86e9fc8dd8b744b@65.109.10.232:27013,2422bef180fe121b263cb29fa3e5b31f324c4d11@65.108.108.42:26656,8b3728153ef25bebb43d411d3e06ea1e6d825c21@15.235.53.219:26656,19f6299deac27e917d6356f411d400e2923d4c1e@23.88.91.115:22956,45082483812d7fbf6c1d7c73c2051b0720e32ec3@3.94.1.147:26656,d9a88b59f8b78aa1db43836e5d7438238faf5c8f@35.247.154.38:26656,15e48c03c6f08b1a0a35ea38626d27af4af43bb8@130.193.37.227:26656,f3788f34cea5faf9bcc41fd2d7c4be87181e4810@13.213.122.116:26656,bd4e49e8c1958ef865a9093ae8cbe06ae274fa1a@103.234.71.245:26656,499efe3e04d4d58247d4c91d6812cba5f0a2f291@51.91.67.48:30656,07b6bd70b28103bd4122080100843b2a83537681@15.235.119.114:26656,ebc272824924ea1a27ea3183dd0b9ba713494f83@195.3.220.21:26666,610030996212c634a2c895b4673fcfdfb062638b@185.208.206.162:26656,753f9d25a34a6f67325b42531f4f2e2368bc1d86@88.198.38.151:26656,c1b93580023f12891683431e25fb05d6e4372bef@188.34.207.243:26656,5e951952778848be4aaec8d35cdb188ba767b031@54.199.153.43:26656,8108575603594504341caef34f3d6f9ef55c453a@184.174.37.135:26656,14358a7f970cc0b790d9d8f24513aa11eaf6297f@65.108.238.166:22956,b01cda03ee639d8a01efd168be8952040be416f8@18.235.35.236:26656,1fa749ab7ec4ee0aef63a942493e7ce5e5c29d85@34.87.84.50:26656,9dc4a64e061b36854e33d75cdf045c1d2b273404@34.195.53.91:26656,2e53aad2649eab91d711b45fc2b83690b4156b11@162.19.138.20:26656,0471a19fceefdf595d28d9b0b7f020d0b4eb9e9b@85.237.193.113:26656,ba227966e96506acd5d0110af3a2d4462d96ad31@34.86.22.219:26656,1c0e70871b770938bea3ac2f60def7f5e62ffa2b@162.55.0.195:26656,98823087b61d442a4ab86998709c77b2e517ee78@35.240.152.216:26656,24f83d4c1e4b51fe00da352822a1cbcdea1149f4@65.108.225.126:26656,4ee15cd6f3dae625dbf410ff8aa9facd4b9e96c7@34.143.139.34:26656,3d922c62a5b8241573e83d4d79016f41c022b43b@34.126.163.60:26656,31942da60244c7cd7e05db5d85d82557859414d5@198.244.213.136:26656,53913a0606bcf686595b6e14eaca77fd39dc9fb3@23.109.158.236:26656,cdc98fc960ea41b74e33c0275ab0038937a91dfe@88.99.53.88:26656,79ba880b4da7f5528f0d4b79b378559cdc530307@62.171.165.6:26656,f6c5ff15414bdaaeff59f555eae5ca745c03b37e@77.68.30.186:26656,360c68f66b8e165a293af3ec7677728d4eaddea0@116.202.115.248:26656,4ce256640e5bd082746a696e3d71d8f626443a80@34.143.248.168:26656,7259c4b4efbc0471605959f47285085a7bfd4448@35.240.157.121:26656,f8a112617213052095c68a99fd6260040a235652@45.129.147.242:26657,b0cc97772a5d4e6c507843a16e6636f6be963000@199.247.13.12:26656,268c44707b65471851e70c26d00c8ec9261c15a4@65.108.122.246:26646,7ff95d67cb57b44eba11bed8f3a157eb42bf8311@153.139.245.107:26656,c60ac9d58b02e31b3eec6dfbb867f9336d072f6f@121.78.241.76:41656,38cc521c2cbcc936c2c42b6490c399d3ea4d551b@45.153.35.148:26656,c5e97eed504ced33f15ab231995a68c0eef94410@47.243.134.151:26656,5f1759898d100ef2bab61460449cf6696a1d2058@35.240.171.219:26656,68984b341fbf9809a991c72cfe32fbc87553583c@35.198.219.75:26656,0f2832ff193847e1403dfdd1290237cfb53b2431@34.138.126.238:26656,4a2b39fed2c8693efcba4f050313fc3a78ff3f13@157.90.34.111:16656,3ea84babead3d6bc488810a0f2cf0744cf5c68fe@34.86.22.251:26656,17248657c6a788456c337f4884401a831b1ea2d0@174.138.172.50:30656,807ff4d4429d45838548bab05cd60a695d8ea54c@51.83.140.142:26656,f2c3f4d676b4adce0b8f62582b3cb72ec6aead23@5.135.137.127:26656,8c2c6a7b1a93374e7cdb5484bb348d80b6751f16@162.55.129.170:10356,8ac8ab5741b286adc123799e20e961e86ed4342e@34.76.55.114:26656,714e6dd1dbae791d27518590a1237b97d6117bfc@54.38.46.124:30656,65663f9fb142fea25fa7ab55d13c980e8f698f37@57.128.133.1:26656,4eaaa1008f0487c04559331ddc47ad319aa98afc@98.157.122.100:26656,6425e146d32f3db3a067456a18e2ad012a17f3dc@34.64.245.112:26656,908cbdc5e5b71e716a93f1b7683c2dcd34ac70f1@65.108.229.93:28656,092357cf8057ff150179f2092e56a21dcf6309ee@15.235.14.28:26656,14df75ca29a74b670acd0908e4f50a4ee8eeba56@13.212.159.242:26656,7f4ee402bfaac7d5aa952343f985c222e95d203f@18.179.33.55:26656,cc4f5edc0d2482113338d8f232efaaad8f1b76c5@116.202.96.76:27008,8d72c28400f8e84f93c95fe533cdf89099e24c25@34.142.204.241:26656,5cda7f906ef08667c076cd9b2cc4eb4447d297a5@34.87.51.255:26656,9c5bf0ccbce110dd4162890c0a2c2c6d1f45330b@65.108.234.38:26656,45e438fe45d02dbcf1bea1954a9addd1104debf9@18.180.93.129:26656,e8c86f5ecd1f53899bb8ee2c5af986d3027c51c2@178.18.252.220:26656,5e694e1082f191add1fca6d26ad5e0e9c8fe51a3@95.214.55.227:26666,1f4ef8be39cdebc24e21a822d663028fc2cc2524@15.204.161.104:26656,f1180d35d3697d632bfc705fd5cb048fef2e9624@15.160.187.209:26656,f40730321bbadfbff1dc6235e32652de5cac97d2@65.109.97.249:22956,25f4369ac9cb31a0358c29bde9581fd717086b91@107.135.15.67:26676,f67fba23c4520344bc81fdafab8e86470bc5146f@185.163.64.143:26656,ee287b45460c04f7c9dd086133b8d57e4e381eb4@192.99.20.53:27656,7b6c00012f2411cbfc6f6ecde728d630325edd55@162.55.234.190:56656,f65720eaead72ff532887ec2ba50cace78f1de55@3.39.146.68:26656,d28e8ad7fb8bdcd9d109ac982b09f824acbec8e3@3.126.103.168:26656,caba7ea64b42c83c57b206e3668f6cd842023d8f@51.89.97.105:26002,115d01baed3907b6b939bb0c052548f9fd3e09eb@135.181.138.95:12070,c4254584ff19eb934e01efd485278cea1820da32@15.235.115.152:13100,e10272838a0a54bc08ae12f69fe6d5e33eccac42@15.235.53.30:26656,a8ab3d4507bbb8d0790b75c9c3a39e4f5ec5f0c2@162.19.138.239:11356,fcdfbac66f27552074e27c0124251e06af6b8fc1@54.244.131.5:25656,49f7fbb491faa0eb305feb322acd4d19481e7c96@15.204.163.197:26656,180f77081fa8d626d951b5369f92d4bab00c96b6@65.109.89.45:26656,9eb7da312fc9222cdb7a2ec3c7fe5f0d66109148@148.113.153.111:36656,0f996f16034612e156faf27d03361ec401a65d05@18.138.54.118:26656,2ed997bbf6933d533f27dbdb5ff8e17faf8a9d0b@136.243.67.189:22956,93a8607309c391a5afcb21ccc8a125dcb4791357@51.81.167.60:13100,8d42bdcb6cced03e0b67fa3957e4e9c8fd89015a@34.87.86.195:26656,d1994d6f850252c801e89f2f574e9bcdf5b06ac6@95.217.110.43:26656,0c0cf64205a83ab6e78e231a712ca8eec288ca13@91.194.30.204:21656,d9d1b3aac53a852497bb310f63972453decbce68@194.60.201.251:2656,283718d8ff80c017df6b416c2da7cff5280c5a82@167.235.180.97:22956,f6efd41fc097f270bbb9e38bee76c7c3d0b28134@38.242.234.216:26656,79cd5885ec1efbc68e7807a1546deae627a44a7a@173.212.240.62:26656,40bcbde8554480ca021f8841890b4f2b936b92f0@15.160.38.21:26656,3da0d2906c049a6813a61372103243ec439e1312@35.187.224.251:26656,da5df8a66ff704798982245d1e77b24a1f5ab02b@18.176.159.242:26656,b8d63d9869018c9b4e53e02bd579d6c173cd7d1f@65.109.94.221:43656,34959257a5baf0cd0b4b300975ccdede3167b909@34.126.152.67:26656,4eb232f0d77d7120bc6a11aa7983f065f1c655d9@52.194.8.37:26656,fad4c8e1ea71e4b621692b1637444811e967e5ee@13.230.237.195:26656,5aa1405d22312a6213b7cf82d0e0e03164340eaa@162.19.171.122:26656,0af8609c1dd97ef1a40e13c7e4553d830f8c451b@109.70.113.105:41656,dfb1dfc76ae0f3b465cafecb8b7efb02c7e8f432@65.21.139.155:39656,79740837251bfb6523bccc944c2e9be111c07e62@65.109.92.241:11026,6513473d41b9caadc2d442ea9312561469642c7e@129.151.47.26:26656,02b4be4ba1c055956877a43a0a3b045eef0ed8ae@5.9.99.172:22956,eaa945a2ae43431c419eed87b1ee36b9dff43e5b@45.13.59.97:26656,fc4db9b04408868f082a9886ba65e3a0c9a6cca4@89.149.218.44:26656,83ef515801107dc47728aa87b50f94c816e7be4d@176.9.147.146:46656" sed -i 's|^persistent_peers *=.*|persistent_peers = "'$peers'"|' ${HOME}/.band/config/config.toml ``` #### Fast Sync Make sure you have parameter in $HOME/.band/config/config.toml ``` fast_sync = true version = "v0" ``` # Command Band This is command about CLI Band Protocol ### **Key Management** {% hint style="info" %} we assume, variable name\_your\_wallet is name of your own wallet. Install jq package for management json format **Ubuntu** `apt install jq` **`CentOS`** `yum install jq` **Arch Linux** `pacman -S jq` {% endhint %} {% hint style="info" %} **Running in user** (Assume) : *salinem* We never use this username in our production! {% endhint %} #### **Add New Key** ```bash bandd keys add mywallet --home ${HOME}/.band ``` #### **Recover Key** With Passphrase ```bash bandd keys add mywallet --recover --home ${HOME}/.band ``` With Keyring ```bash bandd keys add mywallet --recover --keyring-backend os --home ${HOME}/.band ``` #### **List Key** ```bash bandd keys list --home ${HOME}/.band ``` #### **Delete Key** ```bash bandd keys delete mywallet --home ${HOME}/.band ``` **Export Key** ```bash bandd keys export mywallet --home ${HOME}/.band ``` #### Import Key ``` bandd keys import mywallet mywallet_file.backup --home ${HOME}/.band ``` #### Show All Balances Address

for mywallet in `bandd keys list --home ${HOME}/.band--output json| jq -r ".[] .address"`
do
   CHAIN_ID="laozi-mainnet"
   RPC="tcp://localhost:16700"
   bandd q bank balances ${mywallet} --home ${HOME}/.band --chain-id ${CHAIN_ID} --node ${RPC}
done

Source Protocol is a comprehensive blockchain technology suite for individuals, enterprises and developers to easily use, integrate and build Web 3.0 applications. It is a broad-spectrum technology ecosystem that transforms centralized web tools and financial instruments into decentralized ones. # Installation Node # Installation Validator Install Node Producer **Chain ID**: source-1| **Latest Binary Version**: v3.0.0 Update and install packages for compiling ``` sudo apt update sudo apt install curl git jq lz4 build-essential zsh -y ``` #### User Management {% hint style="info" %} **Running in user** (Assume) : *salinem* We never used this username in our production ! {% endhint %} Create User, Please Refer to [Broken mention](broken://pages/ymV0m2TBiK3EBy7fI1X9) Login as User salinem ```bash su - salinem ``` or ```bash sudo su - salinem ``` and make sure we are in directory ```bash pwd /mainnet/salinem ``` {% hint style="info" %} **Running in user** : *salinem* {% endhint %} #### FHS of Source Create FHS for application ```bash echo "Install FHS" mkdir -p ${HOME}/tmp mkdir -p ${HOME}/lib mkdir -p ${HOME}/bin mkdir -p ${HOME}/conf mkdir -p ${HOME}/systemd ``` ### Install Golang ```bash # Install Go 1.19.1 wget https://go.dev/dl/go1.19.1.linux-amd64.tar.gz tar xf go1.19.1.linux-amd64.tar.gz sudo mv go /usr/local/go # Set Go path to $PATH variable echo "export PATH=$PATH:/usr/local/go/bin:~/go/bin" >> $HOME/.zshrc source ~/.zshrc ``` #### Install Source ```bash cd ~ # Clone Source Protocol version v3.0.0 git clone https://github.com/Source-Protocol-Cosmos/source.git cd chain git fetch && git checkout v3.0.0 # Install binaries to $GOPATH/bin export GOPATH="${HOME}/lib" make install cp ${HOME}/lib/bin/* ~/bin/ ``` #### Environment {% hint style="info" %} In this case, RoomIT used zsh, if you used bash just direct to ${HOME}/.bashrc or ${HOME}/.profile {% endhint %} ``` echo 'export PATH="${PATH}:${HOME}/bin"' >> ${HOME}/.zshrc source ~/.zshrc ``` Set Variable ```bash # Chain ID of Source Mainnet export CHAIN_ID=source-1 # Wallet name to be used as validator's account, please change this into your name (no whitespace). export WALLET_NAME= # Name of your validator node, please change this into your name. export MONIKER= # URL of genesis file for Source Mainnet export GENESIS_FILE_URL= https://raw.githubusercontent.com/Source-Protocol-Cosmos/mainnet/master/source-1/genesis.json # Data sources/oracle scripts files export BIN_FILES_URL= ``` #### Intialize Node ```bash sourced init --chain-id $CHAIN_ID "$MONIKER" ``` **Replace genesis file with our genesis file** ```bash wget $GENESIS_FILE_URL -O $HOME/.source/config/genesis.json ``` **Download data sources / oracle scripts files, and store in $HOME/.source/files** ```bash wget -qO- $BIN_FILES_URL | tar xvz -C $HOME/.source/ ``` **Create new account** ```bash sourced keys add $WALLET_NAME ``` Validate Genesis ``` sourced validate-genesis ``` Edit config, You can refer to [Edit Configuration Node](/mainnet/source/installation-node/edit-configuration-node) Apply State Sync, refer to [State Sync](/mainnet/source/infrastructures/statesync) # Up And Running How to start running Source {% hint style="info" %} Ensure you have add sudoers, refer [Broken mention](broken://pages/5bYWaTbeErtLtOa9FvrG) {% endhint %} {% hint style="info" %} **Running in user** (Assume) : *salinem* We never used this username in our production ! {% endhint %} #### Create Systemd Create file in ${HOME}/systemd/source-node.service ```bash export HOME="/mainnet/salinem" cat > ${HOME}/systemd/source-node.service <



seeds="96d63849a529a15f037a28c276ea6e3ac2449695@34.222.1.252:26656,0107ac60e43f3b3d395fea706cb54877a3241d21@35.87.85.162:26656"
sed -i.bak -e "s/^seeds =.*/seeds = \"$seeds\"/" ${HOME}/.source/config/config.toml

Peers Node ```bash peers="" sed -i 's|^persistent_peers *=.*|persistent_peers = "'$peers'"|' ${HOME}/.source/config/config.toml ``` #### Fast Sync Make sure you have parameter in $HOME/.source/config/config.toml ``` fast_sync = true version = "v0" ``` # Command Source This is command about CLI Source ### **Key Management** {% hint style="info" %} we assume, variable name\_your\_wallet is name of your own wallet. Install jq package for management json format **Ubuntu** `apt install jq` **`CentOS`** `yum install jq` **Arch Linux** `pacman -S jq` {% endhint %} {% hint style="info" %} **Running in user** (Assume) : *salinem* We never use this username in our production! {% endhint %} #### Gas Fee ``` --gas=1000000 --gas-prices=30000000000usource --gas-adjustment=1.5 ``` #### **Add New Key** ```bash sourced keys add mywallet --home ${HOME}/.source ``` #### **Recover Key** With Passphrase ```bash sourced keys add mywallet --recover --home ${HOME}/.source ``` With Keyring ```bash sourced keys add mywallet --recover --keyring-backend os --home ${HOME}/.source ``` #### **List Key** ```bash sourced keys list --home ${HOME}/.source ``` #### **Delete Key** ```bash sourced keys delete mywallet --home ${HOME}/.source ``` **Export Key** ```bash sourced keys export mywallet --home ${HOME}/.source ``` #### Import Key ``` sourced keys import mywallet mywallet_file.backup --home ${HOME}/.source ``` #### Show All Balances Address

for mywallet in `sourced keys list --home ${HOME}/.source--output json| jq -r ".[] .address"`
do
   CHAIN_ID="source-1"
   RPC="http://localhost:16702"
   sourced q bank balances ${mywallet} --home ${HOME}/.source --chain-id ${CHAIN_ID} --node ${RPC}
done

# Installation Node # Installation Validator Install Node Producer/Validator Sge **Chain ID**: sgenet-1 | **Latest Binary Version**: v1.1.1 Update and install packages for compiling ``` sudo apt update sudo apt install curl git jq lz4 build-essential zsh -y ``` #### User Management {% hint style="info" %} **Running in user** (Assume) : *salinem* We never used this username in our production ! {% endhint %} Create User, Please Refer to [Broken mention](broken://pages/ymV0m2TBiK3EBy7fI1X9) Login as User salinem ```bash su - salinem ``` or ```bash sudo su - salinem ``` and make sure we are in directory ```bash pwd /mainnet/salinem ``` {% hint style="info" %} **Running in user** : *salinem* {% endhint %} #### FHS of SGE Create FHS for application ```bash echo "Install FHS" mkdir -p ${HOME}/tmp mkdir -p ${HOME}/lib mkdir -p ${HOME}/bin mkdir -p ${HOME}/conf mkdir -p ${HOME}/systemd ``` ### Install Golang ```bash # Install Go 1.22.3 wget https://go.dev/dl/go1.22.3.linux-amd64.tar.gz tar xf go1.22.3.linux-amd64.tar.gz mv go ${HOME}/bin ``` ### Environment and Variable If Using ZSH ``` # Set Go path to $PATH variable echo "export PATH=$PATH:/usr/local/go/bin:~/go/bin" >> $HOME/.zshrc echo "export GOPATH="${HOME}/lib" >> $HOME/.zshrc echo "export GOMAXPROCS=2" >> $HOME/.zshrc echo "export CHAIN_ID=sgenet-1" >> $HOME/.zshrc echo "export WALLET_NAME=mywallet" >> $HOME/.zshrc echo "export MONIKER=MYNODE" >> $HOME/.zshrc source ~/.zshrc ``` If Using BASH ``` # Set Go path to $PATH variable echo "export PATH=$PATH:/usr/local/go/bin:~/go/bin" >> $HOME/.bashrc echo "export GOPATH="${HOME}/lib" >> >> $HOME/.bahsrc echo "export GOMAXPROCS=2" >> $HOME/.bashrc echo "export CHAIN_ID=sgenet-1" >> $HOME/.bashrc echo "export WALLET_NAME=mywallet" >> $HOME/.bashrc echo "export MONIKER=MYNODE" >> $HOME/.bashrc source ~/.bashrc ``` #### Install Sge ```bash cd ${HOME}/source # Clone SGE Protocol version v1.1.1 git clone https://github.com/sge-network/sge sge cd ${HOME}/source/sge git fetch && git checkout v{'changed': True, 'stdout': '', 'stderr': 'v1.7.0-tmfix', 'rc': 0, 'cmd': '/app/mainnet/sge/bin/sged version', 'start': '2024-06-11 06:40:56.196099', 'end': '2024-06-11 06:40:56.262733', 'delta': '0:00:00.066634', 'msg': '', 'stdout_lines': [], 'stderr_lines': ['v1.7.0-tmfix'], 'ansible_facts': {'discovered_interpreter_python': '/usr/bin/python3'}, 'failed': False} make build cp build/sged ${HOME}/bin/ ``` #### Intialize Node ```bash sged init --chain-id $CHAIN_ID "$MONIKER" ``` **Replace genesis file with our genesis file** ```bash wget https://snapshots.indonode.net/sge/genesis.json -O $HOME/.sge/config/genesis.json ``` **Create new account** ```bash sged keys add $WALLET_NAME ``` Validate Genesis ``` sged validate-genesis ``` Edit config, You can refer to [Edit Configuration Node](/mainnet/sge/installation-node/edit-configuration-node) Apply State Sync, refer to [State Sync](/mainnet/sge/infrastructures/statesync) # Up And Running How to start running Sge {% hint style="info" %} Ensure you have add sudoers to user salinem, refer [Broken mention](broken://pages/5bYWaTbeErtLtOa9FvrG) {% endhint %} {% hint style="info" %} **Running in user** (Assume) : *salinem* We never used this username in our production ! {% endhint %} #### Create Systemd Create file in ${HOME}/systemd/sge-node.service ```bash export HOME="/mainnet/salinem" cat > ${HOME}/systemd/sge-node.service <



seeds="c2b06ac64284267dde6627db93eef6c87bf81162@65.108.232.168:19056,304535618b71c2fe217fe771c745443ea3d7815e@65.108.0.94:17756,88f341a9670494c3d529934dc578eec1b00f4aa1@141.94.168.85:26656,c298f3b9d90a5258d48a97ab0577de734a4052dc@65.108.204.209:17756,49d3176741019c4fa911183725981d44c6d51c44@3.34.129.58:26656,423b0dafd7a6b9ea5406d5a0fbae667d9d7ffc11@142.132.248.253:22656,62b3744b7b703de5d946301aa6ea092cda89e02f@213.239.207.175:13156,9d6916344cea096b7adc86b67faf65f2815f09d3@167.235.39.5:60956,ba0a167567c7e08f4bb1e25ec24e42a85b07a0c5@148.113.20.208:17756,053d96f525122d4e20c20b6722d38b367cb04210@65.109.88.254:32656,d91ff3e80de5e07303efb74c6daa02d981b624c4@213.190.31.82:17756,a51476d949df940e636f6d072b14b42aac3a16a8@213.246.45.16:5656,31fa7b0ac148384262dc56c5e90a23e7d48f471d@167.179.79.232:26656,3247b9d019bca2e86e864f5abe8c9b28c2064548@95.165.89.222:24136,3bea9b46a5b067ccc9208e8952e684d37e18e5b0@141.164.56.119:26656,401a4986e78fe74dd7ead9363463ba4c704d8759@38.146.3.183:17756,fd55622051218695a44e1b23aa4347287d70a26d@176.9.92.135:46656,2fd9042e02321cccf513731d6a9bb70c3b12b62d@3.39.25.1:26656,ff69cca1c97a20057c571862e242635e2c460097@141.164.61.145:26656,c902c5873ef611cda24bf4f2be2229171223afdd@3.39.223.174:26656,26238cbb6bf285816bd06ca946b190e7248c389c@46.38.232.86:22656,6619d41e0a1be47c4a79a5438b81793f06ffbc86@65.21.226.187:60556,17da9d2fea9d6d431d390c3b9575547d8881da2b@185.16.39.190:11156,7258d8c7880167fca502592b8d64110d60e99a6b@65.108.232.180:17756,fe527359b6b6c5ad9cc6e2f6ed3af46018b29e15@136.243.36.60:17756,13d370cf706e0cbcbed962f7f5585efead848132@158.69.125.73:10456,d45e4471ed399bfa21c3f5d49c8f9ec0dc1940a7@150.230.137.157:26656,3fc703341935b9356addfe7b3aad8991d9c8a923@148.113.20.207:17756,08db9d08ff534ed65a1c7078e2406d18ff1cc385@51.210.223.84:17756,fa5c3f970a30023c5793cade0fa449d5c8c8e6d5@89.168.24.105:26656"
sed -i.bak -e "s/^seeds =.*/seeds = \"$seeds\"/" ${HOME}/.sge/config/config.toml

Peers Node ```bash peers="" sed -i 's|^persistent_peers *=.*|persistent_peers = "'$peers'"|' ${HOME}/.sge/config/config.toml ``` #### Fast Sync Make sure you have parameter in $HOME/.sge/config/config.toml ``` fast_sync = true version = "v0" ``` # Command SGE This is command about CLI Sge ### **Key Management** {% hint style="info" %} we assume, variable name\_your\_wallet is name of your own wallet. Install jq package for management json format **Ubuntu** `apt install jq` **`CentOS`** `yum install jq` **Arch Linux** `pacman -S jq` {% endhint %} {% hint style="info" %} **Running in user** (Assume) : *salinem* We never use this username in our production! {% endhint %} #### Gas Fee ``` --gas=auto --gas-prices=0.025usge --gas-adjustment=1.5 ``` #### **Add New Key** ```bash sged keys add mywallet --home ${HOME}/.sge ``` #### **Recover Key** With Passphrase ```bash sged keys add mywallet --recover --home ${HOME}/.sge ``` With Keyring ```bash sged keys add mywallet --recover --keyring-backend os --home ${HOME}/.sge ``` #### **List Key** ```bash sged keys list --home ${HOME}/.sge ``` #### **Delete Key** ```bash sged keys delete mywallet --home ${HOME}/.sge ``` **Export Key** ```bash sged keys export mywallet --home ${HOME}/.sge ``` #### Import Key ``` sged keys import mywallet mywallet_file.backup --home ${HOME}/.sge ``` #### Show All Balances Address

for mywallet in `sged keys list --home ${HOME}/.sge--output json| jq -r ".[] .address"`
do
   CHAIN_ID="sgenet-1"
   RPC="http://localhost:16705"
   sged q bank balances ${mywallet} --home ${HOME}/.sge --chain-id ${CHAIN_ID} --node ${RPC}
done

Decentralized Virtual Private Network The Sentinel ecosystem is a global network of autonomous dVPN applications that enable private and censorship resistant internet access # Installation Node # Installation Validator Install Node Producer **Chain ID**: sentinelhub-2| **Latest Binary Version**: v0.11.3 Update and install packages for compiling ``` sudo apt update sudo apt install curl git jq lz4 build-essential zsh -y ``` #### User Management {% hint style="info" %} **Running in user** (Assume) : *salinem* We never used this username in our production ! {% endhint %} Create User, Please Refer to [Broken mention](broken://pages/ymV0m2TBiK3EBy7fI1X9) Login as User salinem ```bash su - salinem ``` or ```bash sudo su - salinem ``` and make sure we are in directory ```bash pwd /mainnet/salinem ``` {% hint style="info" %} **Running in user** : *salinem* {% endhint %} #### FHS of dVPN Create FHS for application ```bash echo "Install FHS" mkdir -p ${HOME}/tmp mkdir -p ${HOME}/lib mkdir -p ${HOME}/bin mkdir -p ${HOME}/conf mkdir -p ${HOME}/systemd ``` ### Install Golang ```bash # Install Go 1.19.1 wget https://go.dev/dl/go1.19.1.linux-amd64.tar.gz tar xf go1.19.1.linux-amd64.tar.gz sudo mv go /usr/local/go # Set Go path to $PATH variable echo "export PATH=$PATH:/usr/local/go/bin:~/go/bin" >> $HOME/.zshrc source ~/.zshrc ``` #### Install dVPN ```bash cd ~ git clone https://github.com/sentinel-official/hub.git "${HOME}/sentinelhub" cd "${HOME}/sentinelhub" git checkout v0.11.3 # always make sure it's the latest version # Install binaries to $GOPATH/bin export GOPATH="${HOME}/lib" make install cp ${HOME}/lib/bin/* ~/bin/ ``` #### Environment {% hint style="info" %} In this case, RoomIT used zsh, if you used bash just direct to ${HOME}/.bashrc or ${HOME}/.profile {% endhint %} ``` echo 'export PATH="${PATH}:${HOME}/bin"' >> ${HOME}/.zshrc source ~/.zshrc ``` Set Variable ```bash # Chain ID of dVPN Mainnet export CHAIN_ID=sentinelhub-2 # Wallet name to be used as validator's account, please change this into your name (no whitespace). export WALLET_NAME= # Name of your validator node, please change this into your name. export MONIKER= # URL of genesis file for dVPN Mainnet export GENESIS_FILE_URL= https://github.com/sentinel-official/networks/raw/main/sentinelhub-2/genesis.zip # Data dVPN binary scripts files export BIN_FILES_URL = ``` #### Intialize Node ```bash sentinelhub init --chain-id $CHAIN_ID "$MONIKER" ``` **Replace genesis file with our genesis file** ```bash wget $GENESIS_FILE_URL -O $HOME/.sentinelhub/config/genesis.json ``` **Create new account** ```bash sentinelhub keys add $WALLET_NAME ``` Validate Genesis ``` sentinelhub validate-genesis ``` Edit config, You can refer to [Edit Configuration Node](/mainnet/sentinel-network/dvpn/installation-node/edit-configuration-node) Apply State Sync, refer to [https://github.com/roomit-xyz/docs.roomit.xyz/blob/master/mainnet/sentinel-network/dvpn/infrastructures/statesync.md](https://github.com/roomit-xyz/docs.roomit.xyz/blob/master/mainnet/sentinel-network/dvpn/infrastructures/statesync.md "mention") # Up And Running How to start running dVPN Sentinel {% hint style="info" %} Ensure you have add sudoers, refer [Broken mention](broken://pages/5bYWaTbeErtLtOa9FvrG) {% endhint %} {% hint style="info" %} **Running in user** (Assume) : *salinem* We never used this username in our production ! {% endhint %} #### Create Systemd Create file in ${HOME}/system/dvpn-node.service ```bash export HOME="/mainnet/salinem" cat > ${HOME}/systemd/dvpn-node.service <



seeds="ade4d8bc8cbe014af6ebdf3cb7b1e9ad36f412c0@seeds.polkachu.com:23956,89757803f40da51678451735445ad40d5b15e059@169.155.169.176:26656,ee49aa4d21783178781ab7b08922e3a4e288d977@178.63.93.41:50656,182c428b5ff02dc44bdc20a782b28f0cea204bd4@170.39.193.124:26656,4c011a64e66a38df4139ad2af5e8fe0798d00624@65.109.97.249:23956,abc27c91439681b1e7fa4b08b54ebbcc42855973@51.79.80.156:26656,ef48f35580cf0034e12ca05eafd202a0cc0b577b@75.119.148.134:26656,2a426a8a0070a6830bad32b96cd3da1b7b6a2faa@65.108.11.250:29656,207b4b7471e2a5268af8d8bb4d6c5f9cdeb2483d@135.181.5.164:26656,807ad7b69c6500693b599f3c1050bb5e93efad20@65.109.86.249:26656,90ba2861eec3821fd6cf5b38c04eb064e8f13e76@87.20.12.119:26656,39ebd409f6d7bf68276955ded8f44bb3703a3273@65.108.199.42:26656,89757803f40da51678451735445ad40d5b15e059@169.155.169.176:26656,dc8f68628bf86052fc12223abb9c258b95d677de@95.217.198.248:26656,9743903cd8bc169fe2a1fd6649ebd96b3a343141@167.172.111.114:26656,9045af707b492d02d05a7865a126d80d15627d91@65.109.97.51:26656,207a60cfbb81efe375754d6bd81c2bd2c9940d21@85.76.37.97:26656,ca2c8aa924b7b74e86eac5fe06c61d9cceb55cb1@65.21.106.116:26656,5cff17208836ff4290086f43e3c72d9a7248e51d@194.163.161.194:16646,8ebf4283512f708c2aee9d52e37aa694a5ec597a@49.12.165.122:26103,ee49aa4d21783178781ab7b08922e3a4e288d977@178.63.93.41:50656,dd51ff321f29b59b51eedb8682acb3a9f07d44a6@138.201.131.133:26656,11dd817e50479f928a52cf16e07dfb0e207a4772@45.77.62.130:26656,493c4bee520125dea7b93bbe054b0e3918130f3f@46.38.251.243:26656,26422b225939a310fe1022730b38149a69d7d97e@38.242.200.201:26656,b4461589996ccec4eb39cdfa69cacbb57433324e@37.143.9.75:26656,aac50c78fcafc5d87c8cfb8fe25d476b3db6182e@66.172.36.134:26656,e7b825983d15eef809e929b44b2085dcec9d27b6@51.68.44.219:26556,356e02cf1bb1df0e34e5c9f0470c0ad677bee6d6@185.150.26.184:26656,8b505a3c417852b0fb00b4e82a7c10d76501ff66@135.135.158.183:56656,3bbf71ce33504686947d0138405c673a25555738@188.34.151.176:26656,233592737772cf4e8aca29623cb54d53e978bf84@51.159.185.51:26656,d7883818b535db4d889d55c503384973d1370057@66.172.36.133:26656,34d05f43ce549e411a92caf46385d03746f4e1fe@167.86.71.15:26656,58467dfb5a35a9b7cb48fdec2ea1719b028d8d74@102.223.5.249:26656,4c011a64e66a38df4139ad2af5e8fe0798d00624@65.109.97.249:23956,464d1b0650ee82c975e1e7f40ae737f4f688ae32@178.154.212.189:26656,578993078e27b2b5f0c205becd3ad263fb9c366b@192.99.4.66:26796,bbed952face3a6b37a15634c7ef547461d05c96b@95.217.196.54:19999,7b59a0d40ce7d64459d1858c5b5c453e2f59f05c@38.109.200.33:26656,442e7d3d100a91ed2d16c15879b36a8beef7faca@89.58.26.9:26656,7a13027588da83f557a176608c785f79ede84564@66.172.36.135:26656,e726816f42831689eab9378d5d577f1d06d25716@169.155.170.219:26656,c5315e5e43e8e718c7c926c75b651e398750a4f8@155.138.252.9:26656,d44c7d6cf3202faaadf8caa4aa81180201b92fd6@194.233.70.56:26656,4506adc06a18029f5620570cfe8cf0144a550125@135.181.216.151:50656,cb6ae22e1e89d029c55f2cb400b0caa19cbe5523@38.132.56.20:32670,182c428b5ff02dc44bdc20a782b28f0cea204bd4@170.39.193.124:26656,6198aba1915d01d0e2306bb9b0c502e4d0f788c2@65.109.106.169:26656,8ad3670e4e2b086570eb75d3f4a7de7ac53b4139@85.215.101.214:23656,00673903c9a12081c7713b6757f62a8c7d7ffcbf@51.159.110.196:26656,694324d39f53d6e6a0f79d33f535d0ee4a96f74a@37.120.245.177:26656,662ccbd8c9885ddff6800a707da3dc6b0c4ed49d@15.235.115.148:10001,d90df66ac0bb4a364ccfa0b091b4ffd967ef0090@149.102.157.182:26656,45ed1c0498e1ba7894e1362d533583b8c0fa1ae7@136.243.67.189:23956,ffa0ec6801c91858bb1204ae5da54167ace3b6a6@65.21.20.7:26656,0d9f4ae53eb69d4790e9633094b19e0ff18c6e82@5.10.24.84:26656,09423cc26d5490db197f944908eb2a13ec1c1288@65.108.103.184:25656,270cc047a5653b15c4c21d62c622b94f00ab5046@65.108.140.132:26656,dfd4db1ad111c62c83fa300af0092b253773aecc@65.108.106.135:26686,99f7fe677d2b5262fe95fb21e3edc5b9fc16fc4f@219.77.8.110:26706,b212d5740b2e11e54f56b072dc13b6134650cfb5@169.155.45.136:26656,4398bd773ac885b7365de3604eb487be10c54563@95.214.55.227:26706,1fe8fddc8a63641774e50ff4518e022c1529fc20@51.210.240.201:10356,66d0d22dc5e1e542c200da1fc097dae5ea1f3b4e@195.201.175.156:17256,5ace0e57784e34930360bf6cc00dd5265278f708@65.108.238.166:23956,ada37df88e50dd6b04571f8aa010a700d953e89a@138.201.60.188:26656,9c42bcb0d931b6387b4f808f540139bcd5bda968@131.153.174.14:53656,2d786027097ca30c5843cf9f11c14a270499d305@3.85.203.113:26656,d1f02ec2c3447e7a218ece5a2aab8f114dece309@167.114.118.234:26796,1154ef380c350885aef8a2fae6dc308f6844594a@65.108.6.54:50656,e1f3c666366bd464bfd15ed354c9282efdacb560@159.89.27.119:31981,6de4634676e4940ed31bd3e4fde4476e153e466e@95.216.102.124:26656,3499b0a7145dc28c0a5afa4e780a995c363d9e6b@95.216.228.231:26656,677f3be450b746ad530ce02d61ec560ee7430a04@51.15.20.23:26656,ebc272824924ea1a27ea3183dd0b9ba713494f83@195.3.223.168:26706,d2d9596df39d9b57ab1f01b8dea1b346178bf6e4@63.33.136.84:26656,4e1c2471efb89239fb04a4b75f9f87177fd91d00@169.155.171.37:26656,1f95bc704608d6f3d42bfce58e0fefbaef818891@89.149.218.78:26656,abc27c91439681b1e7fa4b08b54ebbcc42855973@51.79.80.156:26656,74a7668894864d5b848037c4ab0d7c3204a1cc97@51.222.41.188:36656,a77f6a094578dad899e2f40e0626b4c6d4705311@3.36.165.232:15100,708b2d5edee8b1f8cb9fcb0dd3cb5b794aeb34d6@135.181.211.184:46656,72f1eb93ac325ebd26209e4f640ee5b759f6ebad@54.150.227.110:26656,adad660c3110c10ca0e2f5e434c2f54b9dcb4e60@212.95.53.148:26656,6c277d3d25cecb8aa3659cf564f896436b372257@103.180.28.108:26656,c462db7a9b0d0ac8d26bddf55ed3ebff13219e51@185.215.166.90:26656,f369be4fb67bbdf6e5542bde352df35b7d4bfd61@208.88.251.50:26656,1c3409fde1bfe7719df8c60c56284ee36b4940e5@212.6.182.242:26656,e407ce1485c5c5abe86d4c4b04f21bc04c321edc@89.58.31.128:36656,062847a82a69469c582429235c1b86365b92294d@65.21.201.244:26706,e46ba943d251e353bfc1571a168affff30e420fa@65.108.235.36:21656,ae9242d78fc004e1c437c5749eb3c0cbab7e879d@159.65.228.219:26656,c1aa31a747bb2497e45656b6b7d972225c9a439c@207.148.27.252:26656"
sed -i.bak -e "s/^seeds =.*/seeds = \"$seeds\"/" ${HOME}/.sentinelhub/config/config.toml

Peers Node ```bash peers="" sed -i 's|^persistent_peers *=.*|persistent_peers = "'$peers'"|' ${HOME}/.sentinelhub/config/config.toml ``` #### Fast Sync Make sure you have parameter in $HOME/.sentinelhub/config/config.toml ``` fast_sync = true version = "v0" ``` # Command Sentinel This is command about CLI Dvpn ### **Key Management** {% hint style="info" %} we assume, variable name\_your\_wallet is name of your own wallet. Install jq package for management json format **Ubuntu** `apt install jq` **`CentOS`** `yum install jq` **Arch Linux** `pacman -S jq` {% endhint %} {% hint style="info" %} **Running in user** (Assume) : *salinem* We never use this username in our production! {% endhint %} #### Gas Fee ``` --gas=500000 --gas-prices=0.1udvpn --gas-adjustment=1.4 ``` #### **Add New Key** ```bash sentinelhub keys add mywallet --home ${HOME}/.sentinelhub ``` #### **Recover Key** With Passphrase ```bash sentinelhub keys add mywallet --recover --home ${HOME}/.sentinelhub ``` With Keyring ```bash sentinelhub keys add mywallet --recover --keyring-backend os --home ${HOME}/.sentinelhub ``` #### **List Key** ```bash sentinelhub keys list --home ${HOME}/.sentinelhub ``` #### **Delete Key** ```bash sentinelhub keys delete mywallet --home ${HOME}/.sentinelhub ``` **Export Key** ```bash sentinelhub keys export mywallet --home ${HOME}/.sentinelhub ``` #### Import Key ``` sentinelhub keys import mywallet mywallet_file.backup --home ${HOME}/.sentinelhub ``` #### Show All Balances Address

for mywallet in `sentinelhub keys list --home ${HOME}/.sentinelhub--output json| jq -r ".[] .address"`
do
   CHAIN_ID="sentinelhub-2"
   RPC="http://localhost:16704"
   sentinelhub q bank balances ${mywallet} --home ${HOME}/.sentinelhub --chain-id ${CHAIN_ID} --node ${RPC}
done
